Einleitung
For this repair you will learn how to replace a battery, one topic that will need to be understood is how to use a soldering iron. Being able to use that will have a big effect on replacing the battery.
-
-

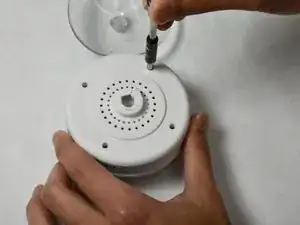

Remove the four 9.09mm Philips #1 screws that hold the 2 pieces of the cover together.
-

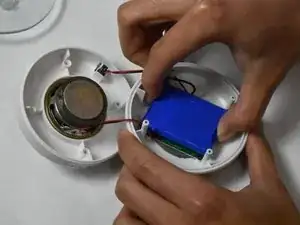

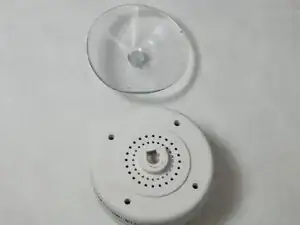

Pull apart the two halves.
-
-
-

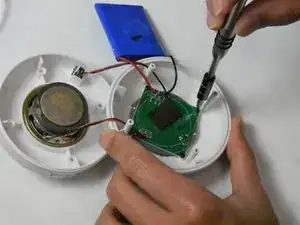

Remove the four 5mm Phillips #1 screws from the motherboard.
-

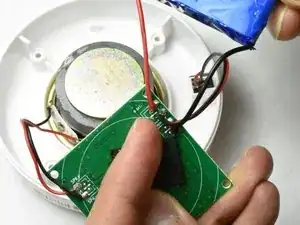

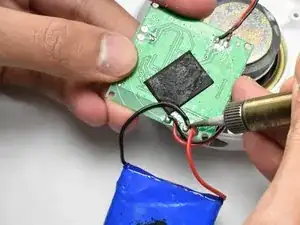

Desolder the two wires connecting the battery tp the motherboard.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
