Einleitung
1°/ Remove the 4 screws on the bottom (take care because to one, the blue screw, of them is shorter than others).
Werkzeuge
-
-

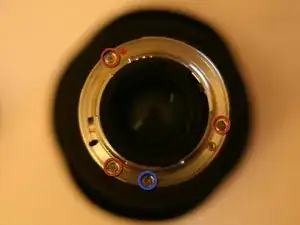

1°/ Remove the 4 screws at the bottom (take care because to one of them, blue screw, is shorter than the others)
-
-
-

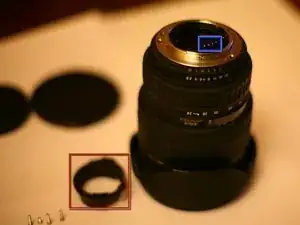

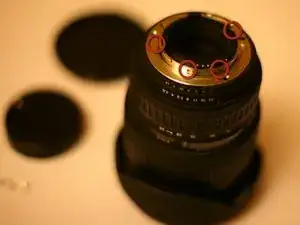

Remove the 4 screws around the steel ring in order to disassemble the captor (blue area) and the plastic ring (red area) which is insert inside the steel ring and behind the captor
-
-
-

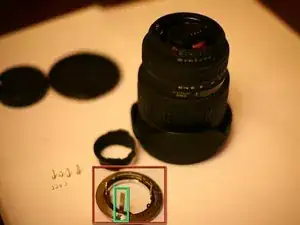

Remove the steel ring (red area) due to a vertical translation (take care with the vertical sheet, in green area metal, which is used to open the diaphragm)
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
