Einleitung

This guide will show how the front cover is replaced in the case that the screen cracks or breaks.

  1. 3U1WTZIDp1dsQssM
    • From the back of the device, slide the back panel downwards to unlock the panel.

    • Lift the panel up, exposing the battery.

  2. bUmEOncXHUotWqYb
    bUmEOncXHUotWqYb
    FgjXqSJUWiHSAOjl

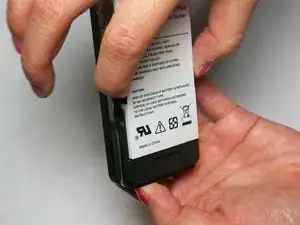

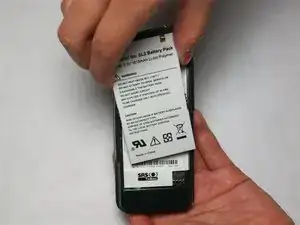

    • Pinch the battery from both sides and lift the battery to remove it.

  3. aSjEwMQNYYoQIeLF

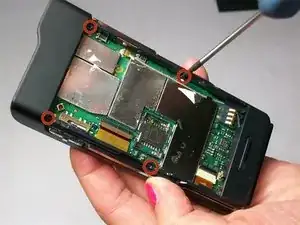

    • Unscrew the four 6.68mm (1.43mm diameter) Philips #00 screws.

    • If needed, remove the sticker to see the screws

  4. nBec3oIpYXWVKqrf
    nBec3oIpYXWVKqrf
    CscFWmDJXcIwDTPk

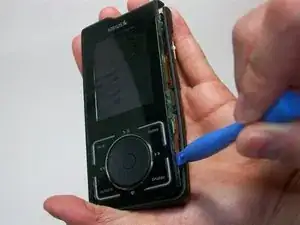

    • Start by using a plastic opening tool to loosen the front cover from the sides.

    • Work your way to the bottom of the cover then the top.

    • Carefully pry the front cover off.

Abschluss

To reassemble your device, follow these instructions in reverse order.
