Sirius Stiletto 2 LCD Display Replacement

Geschrieben von: Benjamin Her
  • Kommentare: 0
Sirius Stiletto 2 LCD Display Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

15 - 30 Minuten

Einleitung

Replace your LCD display only as a last option. Since the LCD display uses a flexible flat cable(FFC), improperly inserting the cable may cause damage to your device.

  1. 3U1WTZIDp1dsQssM

    • From the back of the device, slide the back panel downwards to unlock the panel.

    • Lift the panel up, exposing the battery.

  2. bUmEOncXHUotWqYb
    bUmEOncXHUotWqYb
    FgjXqSJUWiHSAOjl

    • Pinch the battery from both sides and lift the battery to remove it.

  3. aSjEwMQNYYoQIeLF

    • Unscrew the four 6.68mm (1.43mm diameter) Philips #00 screws.

    • If needed, remove the sticker to see the screws

  4. nBec3oIpYXWVKqrf
    nBec3oIpYXWVKqrf
    CscFWmDJXcIwDTPk

    • Start by using a plastic opening tool to loosen the front cover from the sides.

    • Work your way to the bottom of the cover then the top.

    • Carefully pry the front cover off.

  5. WtLDlyhcACnDLEZo

    • Gently lift the latch on the the ribbon cable connector inward (towards the motherboard).

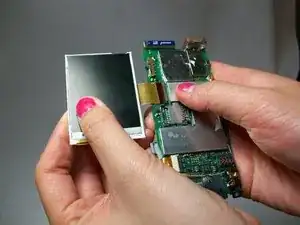

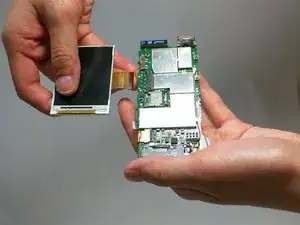

  6. tVip2NmGHvrtZH5r
    tVip2NmGHvrtZH5r
    eNHQ1fUqkSCA2Aqn

    • Carefully grip the screen and pull it away from the ribbon connector located on the motherboard.

  7. bbVCbCXeBvtX4nuH

    • LCD display (left).

Abschluss

To reassemble your device, follow these instructions in reverse order.
