Sirius XM Onyx Plus Screen Replacement

Geschrieben von: Angel Rivera
  • Kommentare: 0
Sirius XM Onyx Plus Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

10

Zeitaufwand

5 Minuten

Einleitung

Screens can crack or wear out so you need to change the screen.

  1. l1kZwrK6BWICIv5u

    • Wedge a plastic opening tool in between the case.

  2. FxuqXBPwGPsHKGCj
    FxuqXBPwGPsHKGCj
    HvMD1yLiDTOkE4LV
    bJVVLF3ZZoFLLRNi

    • Starting with the bottom left corner, press down on the plastic opening tool to unhook the latches on the inside of the device.

    • You have to start with the bottom left and right corners, and then flip the device to over and do the top of the device.

  3. RrNIEo2kWYJrOot2

    • Once unclipped, separate the back casing from the device.

  4. yDOVNQ5DUhW15RfU
    yDOVNQ5DUhW15RfU
    cUASZHUDqZrfrhE1

    • Remove the three 5.4mm JIS #00 screws from the motherboard.

  5. eBZUc5IDO4ykqpAy

    • Unlatch the two clips located at the top of the device that hold the motherboard in place.

  6. RDKonMZCpAGeGPEU

    • Lift the motherboard up from the bottom.

  7. WYXHw4ElbJDP2WBF

    • Lift the screen up, so you can see where it is attached to the motherboard.

  8. niLNVIc2DxKwMGWI

    • Use a spudger to flip up the retaining flap on the display ribbon cable ZIF socket.

  9. H3DWPOBiRa6pALQc

    • Carefully pull the ribbon out from the ZIF connector.

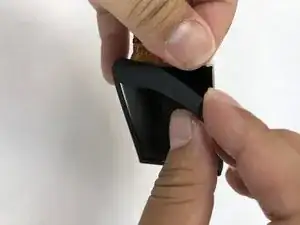

  10. lcsTNYojSUCB2xGG

    • Take the black casing off the screen.

Abschluss

To reassemble your device, follow these instructions in reverse order.
