Einleitung

Is your skateboard veering off in the wrong direction or are you not going in a straight path? Then it’s time to replace the hanger of your skateboard. This guide will teach you how to disassemble & replace a skateboard hanger if it's damaged or broken.

Werkzeuge

  1. 2WIo1ZQPiEgpGqjb
    2WIo1ZQPiEgpGqjb
    2iNeAaGmr5hn2VjY
    • Using the T-tool, unscrew the nut securing the wheel and remove it, setting it and the wheel aside.

  2. EVwWWlpDxkFXIOn6
    EVwWWlpDxkFXIOn6
    KPCDwQRtwxpflhs5
    iFKbQdFWZHJvIEwR

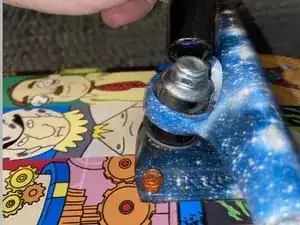

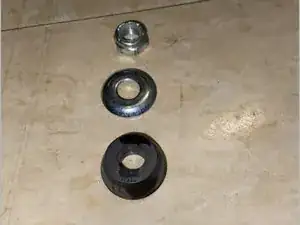

    • Using the T-Tool, unscrew the Kingpin nut, washer and top bushing so that the hanger itself can be taken off.

  3. Mkk6VUVoPBOdeVTY
    Mkk6VUVoPBOdeVTY
    aDIxObNEqG1GQeXN

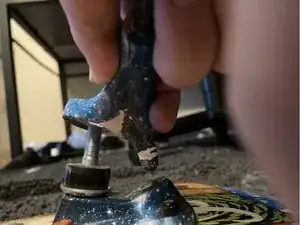

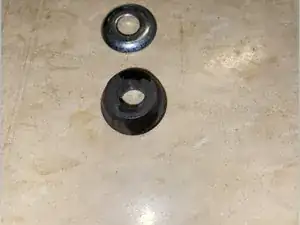

    • Pull straight up to remove the hanger. Remove the lower bushing and the lower cup washer just to check on the riser.

  4. WyMU1Zk1QBXYioSp
    WyMU1Zk1QBXYioSp
    WsAcTYeIT11cgE1J

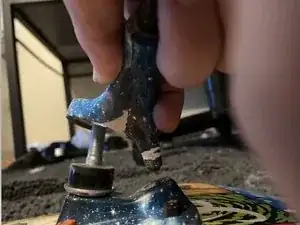

    • To reassemble, take the lower cup washer, then the lower bushing and put it on the kingpin. Next, set the replacement hanger on top of the lower bushing.

  5. ZEMmOi53mpETsFHW
    ZEMmOi53mpETsFHW
    3AaBkakpje5F1WQZ
    rGZnW4hEFxxGLfbL

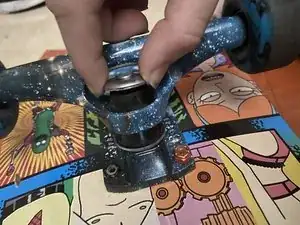

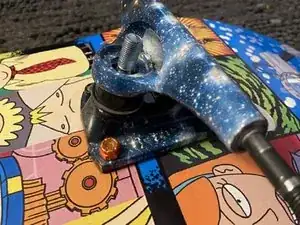

    • After the hanger is added, put the the top bushing, the top cup washer and then the Kingpin nut back.

  6. LKqCpiDnkqKngYbG
    LKqCpiDnkqKngYbG
    BICWVyZfM2hbqtQN
    vocokH46GVQpWEBo

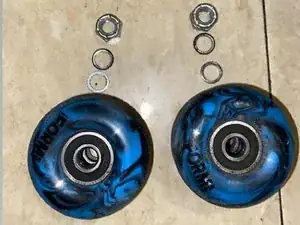

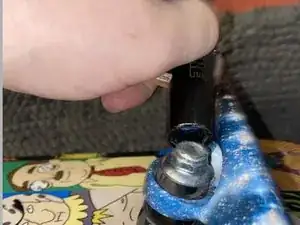

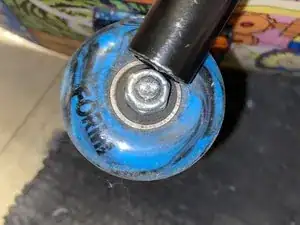

    • After the kingpin nut is secured, take your T-Tool and add the wheels back onto and secure them in place.

Abschluss

To reassemble your device, follow these instructions in reverse order.
