Skateboard Pivot Cup Replacement

Schwierigkeitsgrad

Easy

Schritte

6

Zeitaufwand

6 - 10 Minuten

Einleitung

When wear and tear settle in, pivot cups can produce an annoying squeaking sound, in addition to negatively affecting the performance of skateboard trucks. Replacing a damaged pivot cup is a relatively fast and simple process that can be accomplished anywhere if you have the correct tools.

This guide will demonstrate how to replace the pivot cups on your skateboard, and enjoy a squeak-free ride once again.

  1. F2ocjkaRYvT5vM4B
    F2ocjkaRYvT5vM4B
    5euJ4GNId4IIKdOW

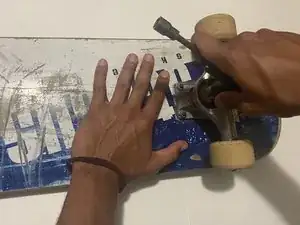

    • Remove the nut from the kingpin.

  2. un54Y4MRWKYjvpjZ
    un54Y4MRWKYjvpjZ
    BW5tBqWaPw1nVV3r
    a2mB6ZgW3YyxaRBh

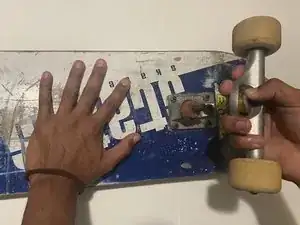

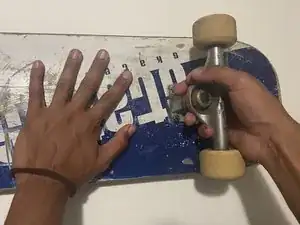

    • Pull off the truck hanger and remove the bushings and washers.

  3. tuPHGbt1tmVf6yEP

    • Place your free hand a safe distance from the screwdriver in case it slips.

    • Wedge the screwdriver into the side of the pivot cup and raise the edge.

  4. 1dRc2dJZUDR2kWLK
    1dRc2dJZUDR2kWLK
    SmQwSoCqX35BupZP

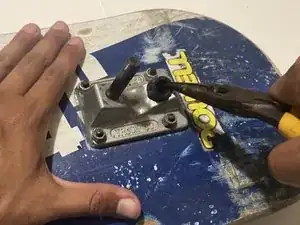

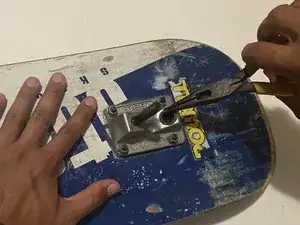

    • Grab the edge of the pivot cup with pliers and pull the pivot cup all the way out.

  5. BOcn2IXV4oXbsATJ

    • Insert your new pivot cup into the hole.

  6. KDEeFkwIsBE4wkXI
    KDEeFkwIsBE4wkXI
    bLwB5XPqkkekVuBm
    L1VUsUw5MH1BQlNT

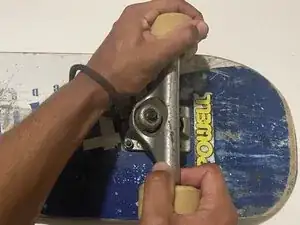

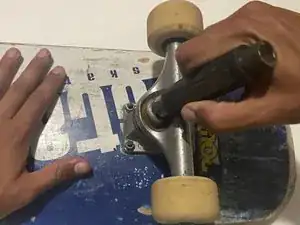

    • Put the parts of the truck back in place.

Abschluss

Enjoy the smooth ride!
