Skil Model 7313 Belt Sander Disassembly

Geschrieben von: Clay Carlisle
  • Kommentare: 4
Skil Model 7313 Belt Sander Disassembly

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

Keine Schätzung

Einleitung

This is the (partial) disassembly of a SKIL Model 7313 Belt Sander.

  1. eCHbkRbQyuFB2vDu

    • Remove the screw on the very top of the device (side with SKIL logo)

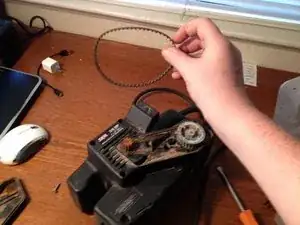

  2. IxiAgDDN6OJERcZY

    • This is difficult for some people, don't be surprised if you cant get it out, ESPECIALLY if the gears are rusted.

  3. jYmjtAWSlcVAfRLS

    • this has six screws, for some you need to look a little harder, and some are out in the open

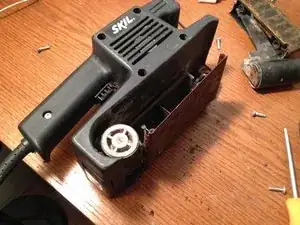

  4. S6YEUsQlMsEeuymO

    • this piece is on the other side of the device, and has two deep screws.

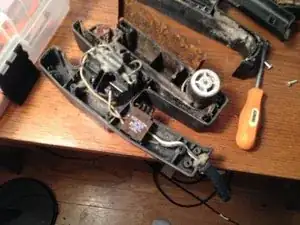

  5. fCbLsdBssi1RUqss

    • half of the handle is part of this cover.

  6. KBkKfhs6cpOeBO5p

    • this is where i had to stop, i do not have a press. you can add to this if you know how to disassemble it from here and have a press to put it back together after you are done.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Clay Carlisle

Mitglied seit: 07/11/16

155 Reputation

4 Kommentare

Where do i put the spring thats about an inch long as when i goto replace the roller

Mike M -

Spring (54) sits vertically in a hole of the plastic base support (32). If you zoom in on the parts diagram, you can actually see this tiny notch in the base support just to the left of the spring. It puts a small amount of pressure on the metal plate of the roller (844), from underneath the metal platen of the belt surface (48).

I had trouble with that too.

Justin -

Skil Sander is good, but my all-time favorite Belt Sander is Dewalt dwe6411k https://bestbeltsander.org/dewalt/dwe641... .... Really, I like this brand sanding process.

Peterc -

My sander belt stopped tracking. The belt rolls off.

How do I adjust for this
