Skullcandy Air Raid Battery Replacement

Geschrieben von: Kristin

Kommentare: 11

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

30 - 40 Minuten

Einleitung

If your Skullcandy Air Raid will not maintain power even after charging, it may be time to replace the battery.

Werkzeuge

Schritt 1

Starting with the corners, gently pull the rubber cover off of the device.

Schritt 2

Using the T-6 hexagonal screwdriver, unscrew the four 10mm #6 hex screws on the right side of the device.
Remove the handle from the device.

Schritt 3

Unscrew the two screws on the left side of the device using the phillips #00 screwdriver.
One 5mm Phillips screw.
One 8mm Phillips screw.

Schritt 4

Gently pull the sides of the front plate outwards from the device.
Pull up on the front plate to remove it from the device.

Schritt 5

Using a #000 Philips Screwdriver, unscrew the four 8 mm Philips screws from each corner of both speakers (eight 8 mm Philips screws total).

Schritt 6

Using the plastic opening tool, pry around edges of the speaker to loosen glue contact with front plate.
If you are unable to loosen glue contact using the plastic opening tool, use a heat gun to assist in removal.

Schritt 7

Lift the speaker out of the device.
Be aware of the connection with the ribbon cable.
For reassembly, ensure proper orientation of the cable plug.

Schritt 8

Firmly pull on the end of ribbon cable to disconnect the speaker from the motherboard.

Schritt 9

Using a Phillips #00 Precision Screwdriver, unscrew two 6 mm screws from the middle of the panel, above and below volume buttons.

Schritt 11

Using a Phillips #00 Precision Screwdriver, unscrew two 6 mm screws from the button motherboard.

Schritt 12

Using a plastic opening tool, pry the button motherboard to detach it from the device.
The button motherboard is connected to a ribbon cable inside the device.

Schritt 13

Pull the black ribbon cord attachment away from the motherboard.
Pull on the cable until it releases from the back of the motherboard.
The black attachment is part of the connector, not the blue ribbon cable, so it will not disconnect from the motherboard.

Schritt 14

Using a Phillips #00 Precision Screwdriver, unscrew two 8 mm screws.
Lift off the back panel.

How do you pull off the back panel? Those two parts are really stuck to each other.

Brandon De La Rosa - 21/09/17

There's four additional screws in the corners! How did you miss that?

David Lassabe -

Schritt 15

Pull on the ribbon cable that connects the battery to the motherboard until the connector releases.

Schritt 16

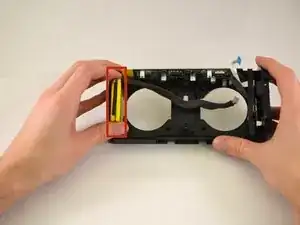

Pull battery straight out until it is completely out of device.
If you are unable to loosen glue contact, use a heat gun to assist in removal.

Battery: 2000 mAh - 3.7v - 7.4Wh. Part number (printed on battery) AEC553450-2P.

Andy Padilla - 09/02/18

Can you please tell me where the white wire in from the battery terminal goes please .. I have a red a black and a white wire and the white wire is not connected anywhere .. i have just bought 3 of these skull air raids as faulty and would like to repair them for my kids .. many thanks

Martin Cook - 11/06/22

Great instructions. Very helpful. But is there any place to find this battery?

shoretorun -

Abschluss

To reassemble your device, follow these instructions in reverse order.
