Einleitung

  1. 6WreiAK1PKhfVpOr
    6WreiAK1PKhfVpOr
    cHvMitVVdo5Eoh5o
    ImO4BqRispDJeZ2x
    • Place the drone with the top side facing up.

    • Remove the blade cover.

    • Remove the rotor blade.

  2. oxprPUBXWg6c6ULo
    oxprPUBXWg6c6ULo
    LfTIjUXHtmTwnO1V
    • Unscrew the 1cm screw holding in the blade lockstitch with the Phillips 0 Screwdriver.

    • Remove the blade lockstitch.

  3. 42MdpuEgxbwH16jv
    42MdpuEgxbwH16jv
    eGmQfxXYebSvbVYQ
    unFidhZKMqfLbTqT

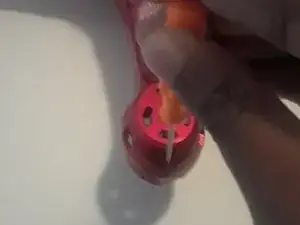

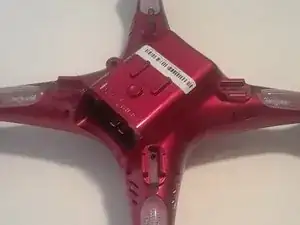

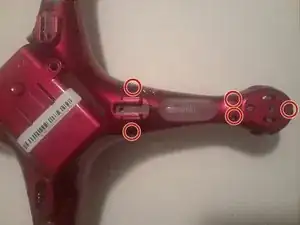

    • Lay down the drone so the battery side is facing up.

    • Unscrew all 5 .8cm screws on each arm of the drone with the Phillips 0 Screwdriver.

    • Repeat previous bullet for each arm (20 screws in total).

  4. FfSrgUuJX5i3nA3T
    FfSrgUuJX5i3nA3T
    T2iWnMRSpJZfSJo4

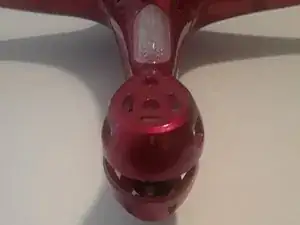

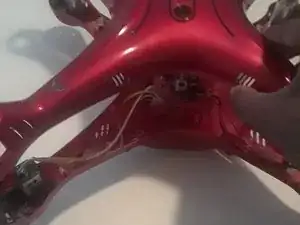

    • Using a bit of force, gently pull apart the lower and upper bodies.

    • Keep going until both parts are completely separated.

Abschluss

To reassemble your device, follow these instructions in reverse order.
