Sky Thunder HD 8500WH Motor Replacement

Place the drone with the top side facing up.

Remove the blade cover.

Remove the rotor blade.

Unscrew the 1cm screw holding in the blade lockstitch with the Phillips 0 Screwdriver.

Remove the blade lockstitch.

Lay down the drone so the battery side is facing up.

Unscrew all 5 .8cm screws on each arm of the drone with the Phillips 0 Screwdriver.

Repeat previous bullet for each arm (20 screws in total).

Using a bit of force, gently pull apart the lower and upper bodies.

Keep going until both parts are completely separated.

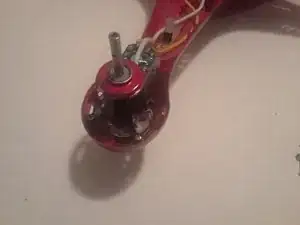

Find the gear mechanism at the end of one of the drone arms.

Unscrew the two front .8cm screws with the Phillips 0 Screwdriver.

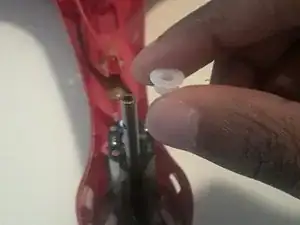

Remove the white spacer.

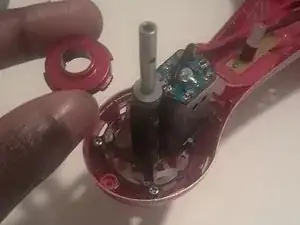

Remove the red spacer.

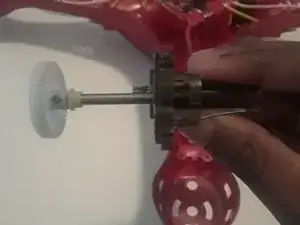

Pull the gear out from the bottom of the holding mechanism.

Unscrew the two .8cm screws on the bottom of the holding mechanism with the Phillips 0 Screwdriver.

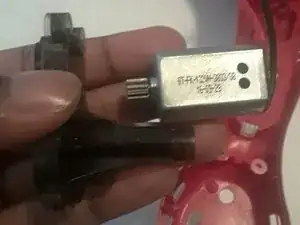

Remove the motor from the holding mechanism.
