New motors and Gears from the Company are out of stock. Provided your gears are fine, I will show you how to replace a motor with a quick connect motor.

  1. RfB6NTvtamNXNvSh
    RfB6NTvtamNXNvSh
    YSWgFDy2PWOjKb2W
    xl2iNYnrS4kCPPdA

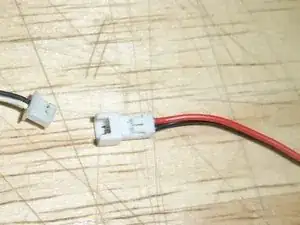

    • First you will need a Phillips PH0 screwdriver, shrink tubing that fits the thin wire, heat gun or lighter, Female Mini JST plug, and new or harvested motor (WLToys V949 motors work well).

    Where do I get a motor for my quad copter that is the Sky Viper v950HD in hopes of fixing the 2 stuck propellers?

    DHS RIDER -

    Any place including Amazon or Ebay that sells the WLToys V949 motors. They are a perfect fit when fully seated and have metal cogs instead on plastic ones but they need to be fully seated .

    Miguel Rodriguez -

  2. PeRjMwiNjfZP2MhR
    PeRjMwiNjfZP2MhR
    12XRnheY5AXCxx66
    LviriYk4FSjHXjCX

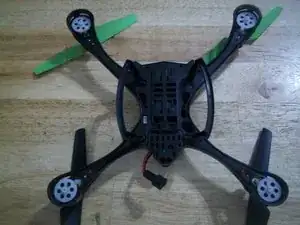

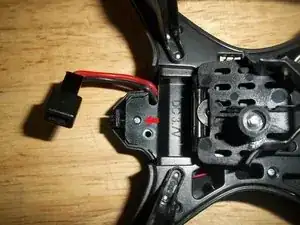

    • Flip the Viper over. My Viper does not have a camera because it is damaged so remember to remove it.

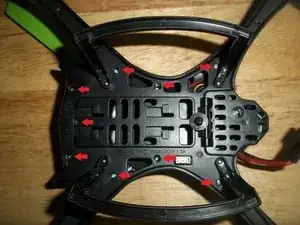

    • Remove the 9 screws holding the bottom plate/battery holder.

    • Remove one last screw in the battery compartment.

  3. WhHPYBQyySc5v5Zt
    WhHPYBQyySc5v5Zt
    FidVfwMPJUfLACAb
    rRwWeRm1tMQ11yrW

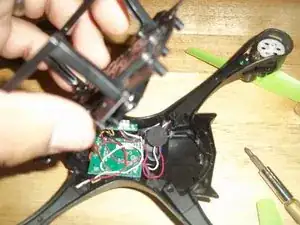

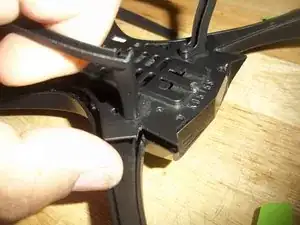

    • Slowly pull the bottom off.

    • It should come completely off with little effort.

    • Then remove the screw holding the arm cover/led holder.

  4. pLyW4HvmJCeYVAeG
    pLyW4HvmJCeYVAeG
    PIgTlUCBQITTqfol
    RrBVRCpyZBigyyUT

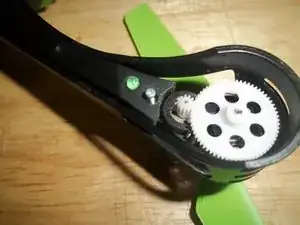

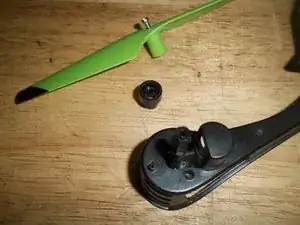

    • Remove the prop and the spacer.

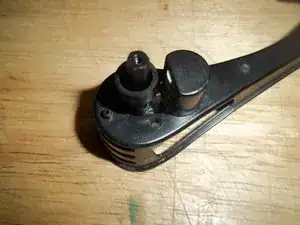

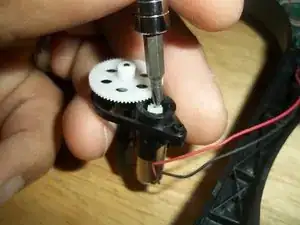

    • Rotate the gear until you see the two screws as pictured and unscrew them. They may not come out of the gear easily so be careful not to lose them.

  5. 1QvuB1IykBbafKA6
    1QvuB1IykBbafKA6
    5CZVCIVHORKpfaEj
    AwEhIEuyVF3AQpX6

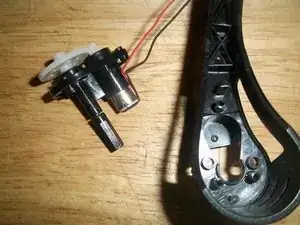

    • Slowly pull out the gear and motor assembly.

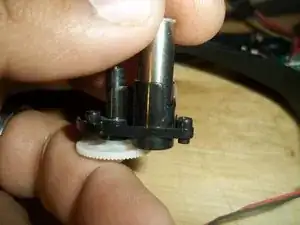

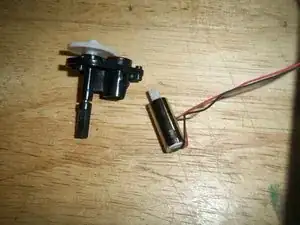

    • Carefully push the motor out of the gear side.

    • Once it is out you can inspect the gears and remove the small gear from the motor just in case it can be used later.

  6. Dg1CXTJUAg465UZI
    Dg1CXTJUAg465UZI
    oUDnLpIP1FboFfZn
    LeH3rQ1M542rNmLm

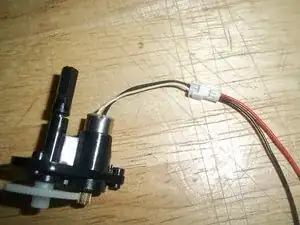

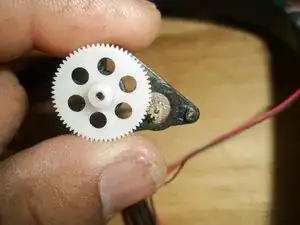

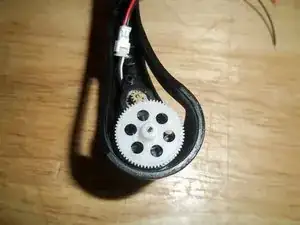

    • The new gear from the WLToys V949 should already have a metal gear that will match up the current pinion.

    • Press it firmly in place and connect the mini JST plug.

  7. eex5YpOLSyVAXL3P
    eex5YpOLSyVAXL3P
    tNDUxRBJQIoYMxY5
    YgTN5Sbh3XFYwUjQ
    • Put the entire assembly back and put the screws back in place.

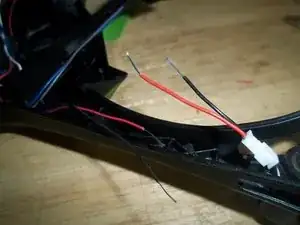

    • Cut the wires at an offset and strip all the wires.

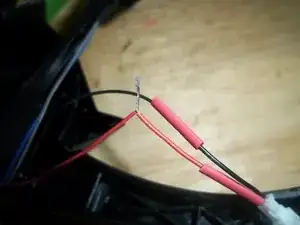

    • Place a small 14mm piece of heat shrink tubing on the wire, match black to black and red to red in this case and hand twist the wires together.

    • Slide the tubing over the bare wires and heat up the shrink tubing to keep the connection from coming apart easily.

  8. ZRBZ5BBnGSXYyPwK
    ZRBZ5BBnGSXYyPwK
    KiBdkhS5kBUGQFpt
    CW2gbOdMIvQNxMw6

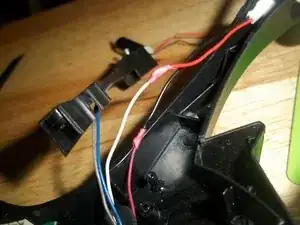

    • I was replacing the motor with red and black wires in the previous step and this is what the motor with the white and red wire looks like when connected.

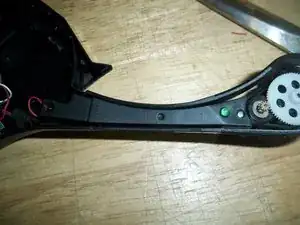

    • Carefully tuck the wired in the side of the arm and replace the cover.

    • Make sure you do not have any of the wires in a place that can be pinched or damaged by reassembly.

    • Now you are ready to put everything back and you now have a Sky Viper with replaceable motors.

    Super explanation sir easy to adhere. Although come to find out my back right motor was not damaged other than the red wire was severed very close to where it goes into the motor . Can I put a drop of soldier to adhere it to the top of the motor itself or will that short it out?? . There is only a centimeter length of wire coming out of the top. I couldn’t twist it to connect.

    capitol city -

    If you have the soldering skills then definitely but do not forget to insulate the area so the solder or any bare wire do not come into contact with anything.

    Miguel Rodriguez -
