Skytex SP728 Antenna Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

10 - 15 Minuten

Einleitung

This repair guide will walk through the primary steps of replacing the antenna in Skytex SP728.

  1. lQLyV26ONQSvfSoD

    • Make sure the device is powered off

    • Rotate the device so the ports and screws face you

  2. liiHDKiyuTipOc2k

    • Using a small phillips screwdriver, unscrew both end screws

  3. xJspClACaKvU1YvO

    • Using a plastic opening tool, work your way around the edge of the device, separating the case from the rest of the device

  4. YXGXMqGDsXWdkSaL

    • Once the case has been loosened, pry the backing off gently with your hands.

    • Make sure to remove the case gently as extra force can break the clasps or the case itself.

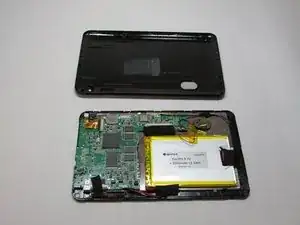

  5. Hf1AQIBEU1H5cVrA

    • Remove the case and open the device

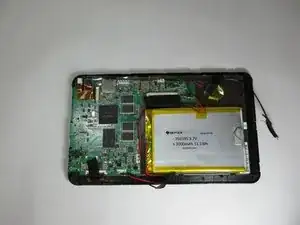

  6. bmCnSUGLjuub2tHg

    • Remove the black tapes

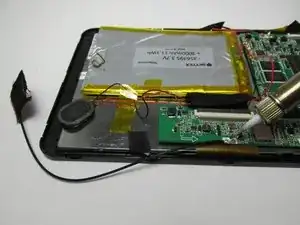

  7. VsIF5OAkaNMZ2hFt

    • Use the soldering station and remove soldered connections to the antenna wires.

    • Now replace the antenna.

    • Follow the link below for additional soldering information "https://www.ifixit.com/Guide/How+To+Sold...

Abschluss

To reassemble your device, follow these instructions in reverse order.
