Einleitung

  1. lQLyV26ONQSvfSoD
    • Make sure the device is powered off

    • Rotate the device so the ports and screws face you

  2. liiHDKiyuTipOc2k
    • Using a small phillips screwdriver, unscrew both end screws

  3. xJspClACaKvU1YvO
    • Using a plastic opening tool, work your way around the edge of the device, separating the case from the rest of the device

  4. YXGXMqGDsXWdkSaL
    • Once the case has been loosened, pry the backing off gently with your hands.

    • Make sure to remove the case gently as extra force can break the clasps or the case itself.

  5. vxxLNG4xkO62sX31
    • Identify the connection location of the wires from the speakers.

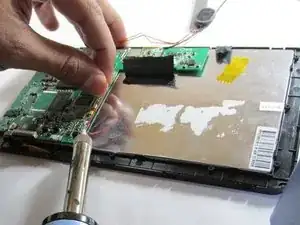

  6. jLV2sXbyOwSFwkws
    • Use a soldering iron to remove the speaker wires from the circuit board

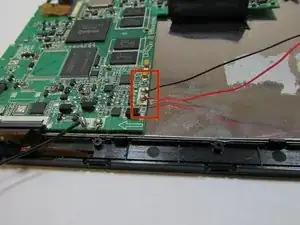

  7. jIIqwxCfKXfbcfw4
    • Solder the new speakers to the correct location, making sure the red wire goes to the + and the black wire goes to the -.

Abschluss

To reassemble your device, follow these instructions in reverse order.
