Smart Parts Ion Bolt Replacement

Geschrieben von: Shane Villalpando
  • Kommentare: 1
Smart Parts Ion Bolt Replacement

Schwierigkeitsgrad

Easy

Schritte

17

Zeitaufwand

15 - 30 Minuten

Einleitung

If the Ion is not shooting properly, the bolt's o-rings may need to be lubricated, or the bolt may be damaged from wear and tear. While working on the Ion, the user should be aware of the pressure due to air inside the gun. Pressurized air can be forceful, causing particles to be ejected from the gun into your eyes and/or skin. When air bubbles enter the bloodstream, they can block blood vessels and cause embolisms. To avoid this, make sure to point the gun in a safe direction when de-gasing the Ion.

  1. a2TMglvVERVG3iUg
    a2TMglvVERVG3iUg
    16Q1YmQbixQABuWB
    gFhTCYMdOVX3mVdE

    • Remove the air tank by rotating it counterclockwise.

    • Do not pull the trigger or jostle the gun, there will still be pressurized air inside the gun that could be expelled and cause bodily harm if injected into eyes and/or skin.

    • The pressure gauge will indicate the leftover air in the gun.

  2. MH3rnKuc44NBLww2
    MH3rnKuc44NBLww2
    IPWD2saqY3UZtDhq

    • Remove the hopper by pulling it out of the feed tube, located on the top of the body. The hopper should easily come off when pulled straight up.

  3. eJ1lrZpKTLBVYTMX

    • Turn the gun on by pressing the power button until the red light blinks.

    • Turn vision mode off by pressing the power button again.

    • Red light should be flashing in a double blink sequence.

  4. dJckMAwXoMvOuN6E

    • Pull the trigger to release the air in the gun.

    • Pressurized air can be forceful, causing particles to be ejected from the gun into your eyes and/or skin. When air bubbles enter the bloodstream, they can block blood vessels, causing embolisms. To avoid this, make sure to point the gun in a safe direction when pulling the trigger because air will be released from the gun.

  5. ABnPtYZmSCrEaNBi

    • Remove the four 8mm screws on each side of the gun's grip using a Phillips #2 screwdriver.

  6. hapXUi5O1nuFtbyR

    • Remove the grip by sliding it towards the front of the gun.

  7. aSDeE41w2rLc3G5O
    aSDeE41w2rLc3G5O
    LZQIAsYENUIiTDD5

    • Remove the 9V battery by unsnapping it.

  8. 5UFUcDGIeBEaYuiS
    5UFUcDGIeBEaYuiS
    j2DB5WGyMqVqvHNH
    ltRUImORBZpUKylY

    • Remove the front and rear 1" screws on the gun's grip frame using a 3/32" Allen Wrench.

  9. wOqw2NQuYZ1KnEOD
    wOqw2NQuYZ1KnEOD
    NA3IaBoS2HryMMvR

    • Remove the 12 mm screw on the top of the grip frame using a 3/32" Allen wrench.

  10. gdUshjO6nBSVqcGg

    • Separate the gun's body from the frame by gently pulling them in opposite directions.

  11. bCWXslpjBxVtyRup

    • Remove the 1-1/4" screw that's attached to the blue tube above the front grip using a 3/32" Allen Wrench.

  12. 25NjWjUYjjQkb2Ft

    • Gently use tweezers to detach the white vision wire harness, located directly under the feed tube.

    • Another small tool or your fingers will work for this.

  13. Nd15JTrWVugfLZVY

    • Remove the two 1-1/4" screws on either side of the circuit board using a 3/32" allen wrench.

  14. dumZ6Ed1PKIvnDwl

    • Separate the solenoid from the gun's body by gently pulling it upwards.

    What do I do if the forward screw broke off on the blue air hose. Where can I get a new screw?

    Imaki2018 - -

  15. QAdgQdmjDVuDaECR

    • Slide the metal body out of the plastic shell by holding one in each hand and gently pulling apart.

  16. LkMfkZHxjd65qhp4
    LkMfkZHxjd65qhp4
    FqirH2YxtUU5KqKc

    • Separate the front body breach from the fire chamber by rotating the breach counterclockwise.

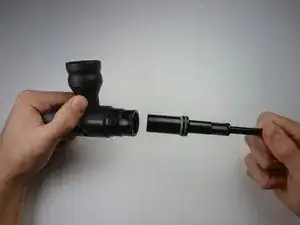

  17. if4ZlESgxfLR4qhu

    • Remove the bolt from the front body breach by gently pulling on the bolt.

Abschluss

To reassemble your device, follow these instructions in reverse order.
