Smart Parts Ion Separate Body From Grip Frame

Geschrieben von: Shane Villalpando
  • Kommentare: 0
Smart Parts Ion Separate Body From Grip Frame

Schwierigkeitsgrad

Easy

Schritte

4

Zeitaufwand

5 - 10 Minuten

Einleitung

  1. 5UFUcDGIeBEaYuiS
    5UFUcDGIeBEaYuiS
    j2DB5WGyMqVqvHNH
    ltRUImORBZpUKylY

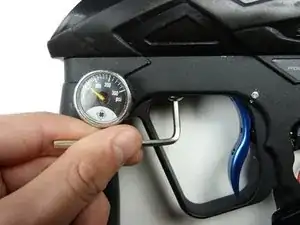

    • Remove the front and rear 1" screws on the gun's grip frame using a 3/32" Allen Wrench.

  2. wOqw2NQuYZ1KnEOD
    wOqw2NQuYZ1KnEOD
    NA3IaBoS2HryMMvR

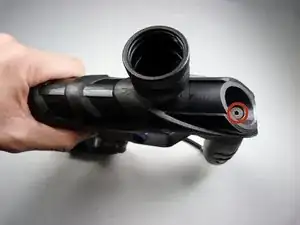

    • Remove the 12 mm screw on the top of the grip frame using a 3/32" Allen wrench.

  3. gdUshjO6nBSVqcGg

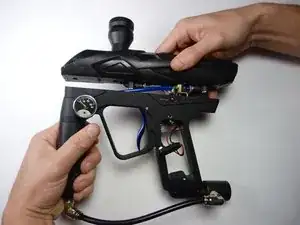

    • Separate the gun's body from the frame by gently pulling them in opposite directions.

  4. bCWXslpjBxVtyRup

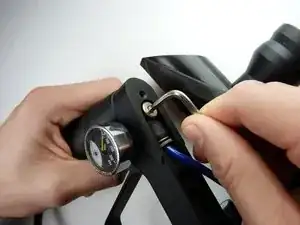

    • Remove the 1-1/4" screw that's attached to the blue tube above the front grip using a 3/32" Allen Wrench.

Abschluss

To reassemble your device, follow these instructions in reverse order.
