Einleitung
Before opening the LCR-Reader, place a small bit of tape over the button on the top housing. This will keep the button from falling loose and being lost.
Werkzeuge
Ersatzteile
-
-

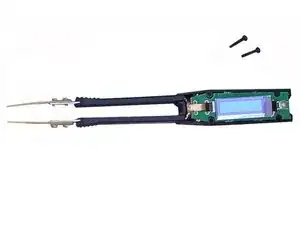

Start by removing the 4 screws in the back of the device using a size 00 Philips screw driver.
-
-
-

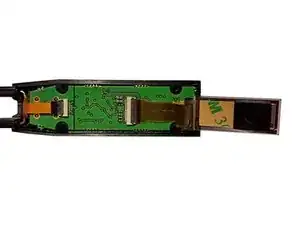

Gently open the zif connector that holds the screen.
-

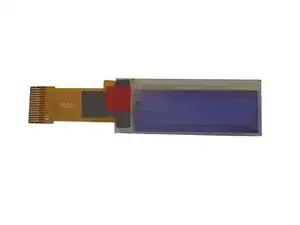

Insert the replacement screen, and close the zif
-
-
-

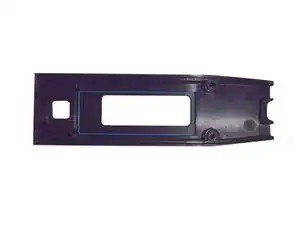

When closing the housing, make sure the screen fits into the rectangle on the top.
-
If the screen is not in this rectangle, it may become damaged when the screws are tightened
-
Hold the screen in place from below; line up the button's edge of the top housing to line up with the bottom housing. Slide your finger out as you bring the top and bottom housings to meet.
-
Replace the 4 Philips screws in the back.
-
