iPhone 12 Teardown

Geschrieben von: Andrea Alfani
Veröffentlicht: 04/09/22
  • Kommentare: 0

iPhone 12 Teardown

Veröffentlicht: 04/09/22

Teardown

Einleitung

  1. uKOKPxRXBlKuVnuC
    uKOKPxRXBlKuVnuC
    igXaDOhWoaeCJNBA

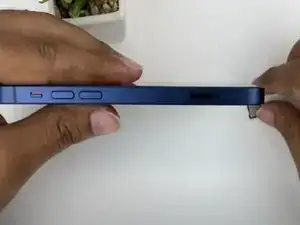

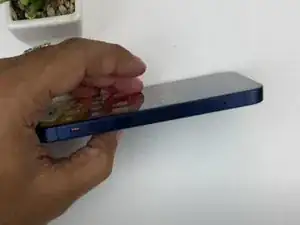

    • Using a SIM extractor remove the support for the SIM card.

  2. WqHCpLkDP1rQrkWm
    WqHCpLkDP1rQrkWm
    31nZmYVXJWHQtRoi
    f1O1rBr3OX2Sl1Gc

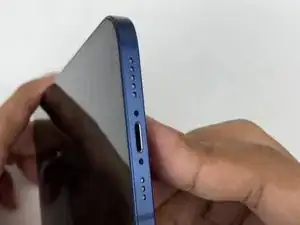

    • Turn off the device

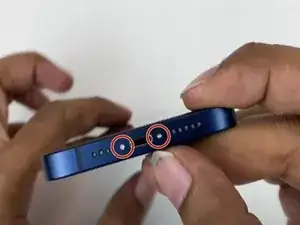

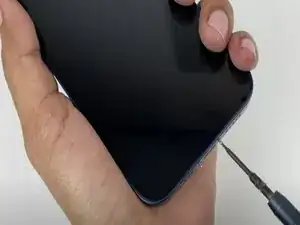

    • Unscrew the two 6.9 mm long Pentalobe screws.

  3. cym4OT6jJamOTSjg
    cym4OT6jJamOTSjg
    cXhDqVrlRKMApTHi
    HrvjvNoFgYlYx5CA

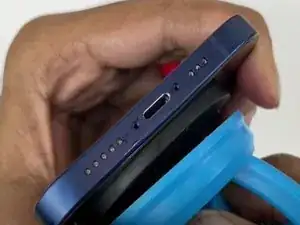

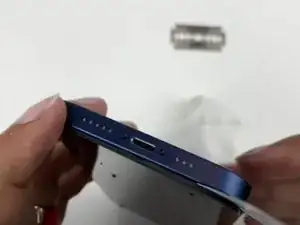

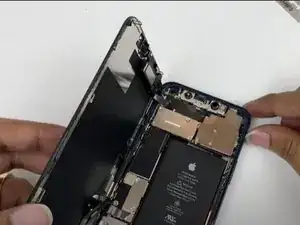

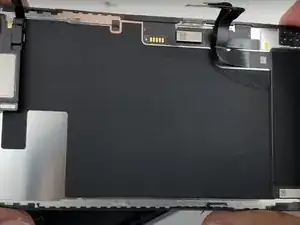

    • Apply a heated iOpener all around the edge of the screen to loosen the adhesive under the display.

    • Lift the display with a suction cup and insert a thin object to separate the screen from the frame.

    • Slide the fine object along the entire edge to cut the adhesive.

    • Raise the display.

  4. mr4aFOZ3OnZTUuRh
    mr4aFOZ3OnZTUuRh
    pROJTEXPHLGcTnT6
    a4JuOxDfhGGUgdt4

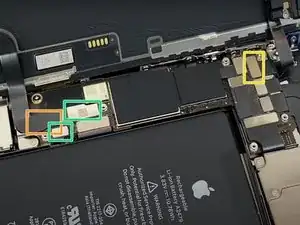

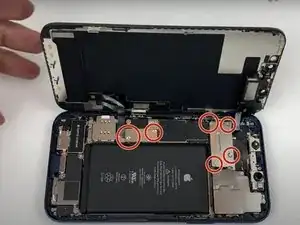

    • Remove the 6 Phillips # 00 screws.

    • With a spudger or with your fingernails, lift the two connectors.

    • Lift the connector underneath.

    • Disconnect the display connector.

    • Raise the display.

  5. tD6hikSHRWN2jX2i
    tD6hikSHRWN2jX2i
    2dGGgL5TH6vkumgr
    6iHAiTUVQbDMJSZp

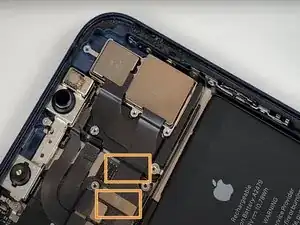

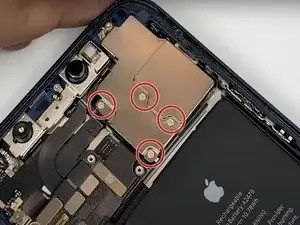

    • Unscrew the 4 Phillips # 00 screws.

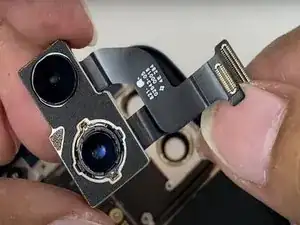

    • With a spudger or fingernails disconnect the two rear camera connectors.

    • Remove the rear camera.

  6. cW5FGYWVTsP5ptst
    cW5FGYWVTsP5ptst
    IpSRZkPpFSfJGL6Q

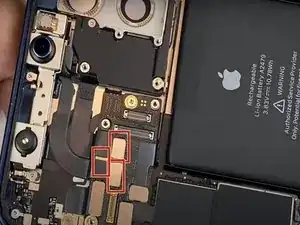

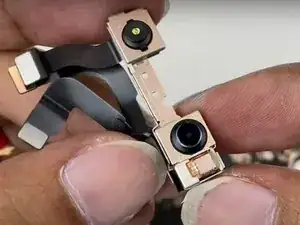

    • With a spudger or fingernails to disconnect the three connectors that connect the front camera.

    • Remove the front camera.

  7. Oy4wccURbFH1mAiu
    Oy4wccURbFH1mAiu
    UGhMmwUH13gVqpWF

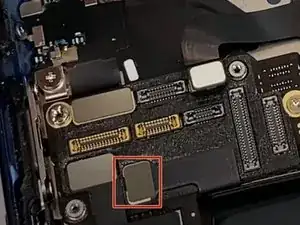

    • With a spudger or fingernails disconnect the battery holder connector.

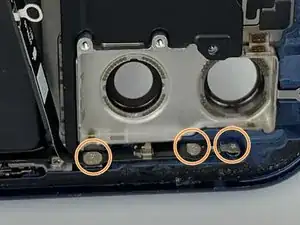

    • Unscrew the 3 Phillips # 00 screws.

    • Remove the battery holder.

  8. HcfpCK2VqsqCnBkB

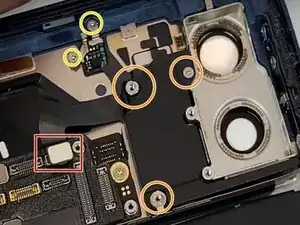

    • With a spudger or fingernails disconnect the rear camera flash connector.

    • Unscrew the 3 Phillips # 00 screws.

    • Unscrew the 2 Phillips # 00 screws.

    • Remove the rear camera flash.

  9. iHDVRlY4YJYitKLW
    iHDVRlY4YJYitKLW
    SRNZFdFI5ELofmrY
    qDfefpLuaH3rdF6v

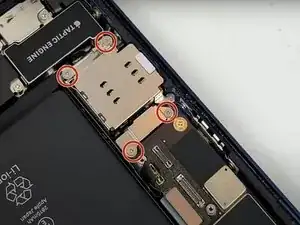

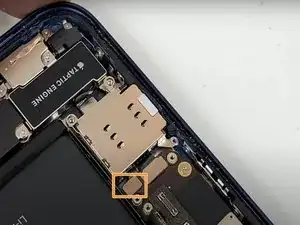

    • Unscrew the 4 Phillips # 00 screws.

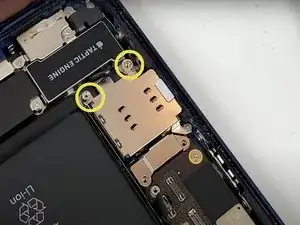

    • Unscrew the 2 screw holders with the suitable screwdriver.

    • With a spudger or fingernails to disconnect the SIM card holder connector.

    • Remove the SIM card holder.

  10. YHGEPSfEqdn31ggS
    YHGEPSfEqdn31ggS
    gSwYXm6gSEX6rCso

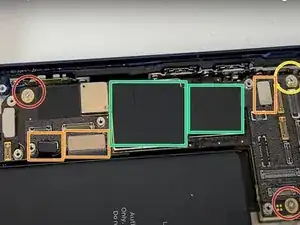

    • Remove the 2 Phillips # 00 screws.

    • With a spudger or fingernails disconnect the 3 battery connectors.

    • Unscrew the screw holder with a standoff screwdriver for iphone.

    • Remove the film with a spudger.

    • Attention this last step is necessary to remove the logic board.

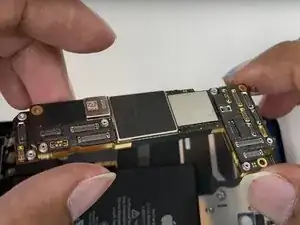

    • Remove the logic board.

  11. lRZwREFKDW5ue32S
    lRZwREFKDW5ue32S
    d2EZf1Z3PWMNNoFc

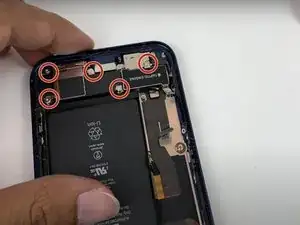

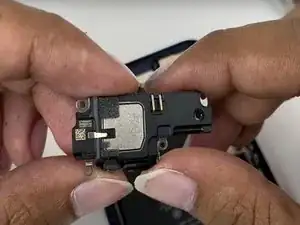

    • Unscrew the 5 Phillips # 00 screws.

    • Remove the speaker.

  12. efPn1MATHATOAVPg
    efPn1MATHATOAVPg
    AiTVJKrvKJjcVKy1

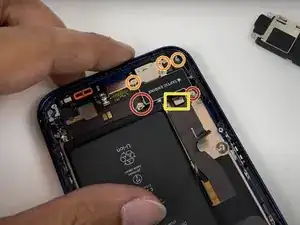

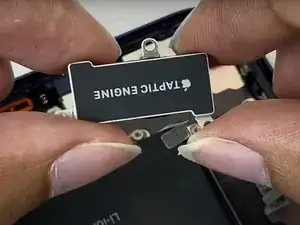

    • Remove the 2 screw holders with a standoff screwdriver for iphone

    • Unscrew the 3 Phillips # 00 screws.

    • Remove the taptic engine connector with a spudger or fingernail.

    • Remove the taptic engine.

  13. RZOP33HFeU1efukZ
    RZOP33HFeU1efukZ
    DfXLNeGIA6aAE5GF

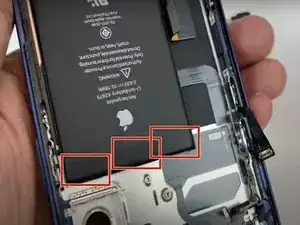

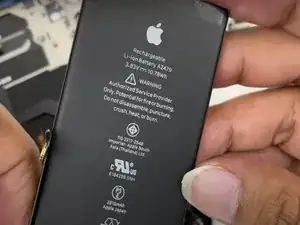

    • Remove the adhesive under the battery.

    • To remove the adhesive under the battery, remove the stickers marked in red in the first photo.

    • Remove the battery.

  14. CNa1eQsQ6NHM3ZMk
    CNa1eQsQ6NHM3ZMk
    qUrYeG5WPbEUGXip

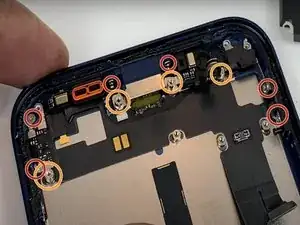

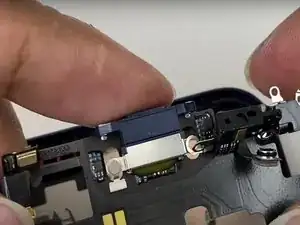

    • Unscrew 6 Phillips # 00 screws.

    • Remove the 4 screw holders with an iPhone standoff screwdriver.

    • Remove the film with a spudger.

    • Attention, the previous step is essential to remove the charging port.

    • Remove the charging port.

    • Be careful not to make too strong, this could damage some components.

  15. PeTAEOUIvdWahDV2

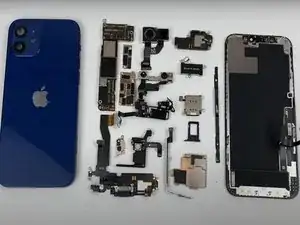

    • And here are all the components that make up the new iPhone 12.
