Snapfon ez One Charging Port Replacement

Geschrieben von: John Bender
  • Kommentare: 0
Snapfon ez One Charging Port Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

15 - 20 Minuten

Einleitung

The charging port is the component of the phone that allows the charger to be connected to the phone in order to charge the internal rechargeable battery.

  1. BTj2CAngDCYYbLlD

    • Turn off the phone to prevent data loss.

    • Press and slide the battery out to remove it.

    • Picture rights belong to Snapfon®. Picture is used for educational purposes only. No copyright infringement intended.

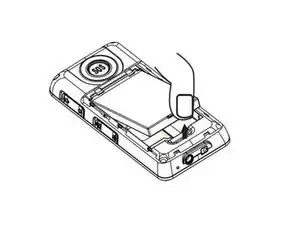

  2. WhDFD2MpXM1OtaTN

    • Pry the battery out with your thumb or the iFixit opening tool.

    • Make sure to properly dispose of the old battery at a recycling center.

    • Picture rights belong to Snapfon®. Picture is used for educational purposes only. No copyright infringement intended.

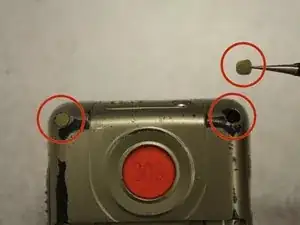

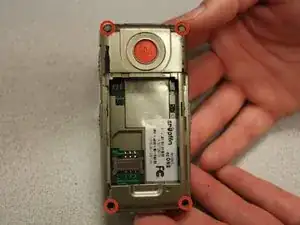

  3. MOmCuToAXEOZU6xS
    MOmCuToAXEOZU6xS
    OqrHjRKtrHGTLjav

    • Remove the four rubber inserts from the screw holes using a pair of tweezers.

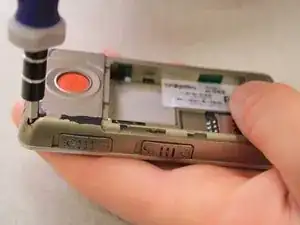

  4. pPPgCTbapFGZDvwr
    pPPgCTbapFGZDvwr
    dLHLw1nWDVAB1LtB
    bTPMmATYmTopFrPx

    • Remove the four 3.1mm screws in the corners with a Phillips #00 screwdriver.

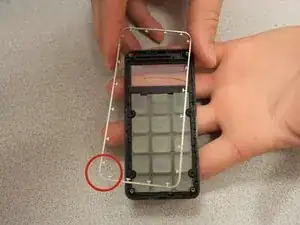

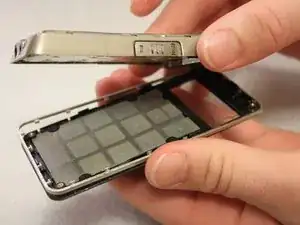

  5. WTyOJfpES6hA3y2B
    WTyOJfpES6hA3y2B
    xORj1JYL5wwNeQru
    POaVSENLeUQKDBnS

    • Separate the front case from the back case.

    • Remove the metal bumper from the front case’s perimeter.

  6. hVudxLb15tkiT66F

    • Pry the volume slider button out with tweezers.

    • The volume slider button may fall out during the separation of the front and back cases. This is OK.

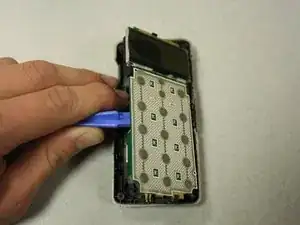

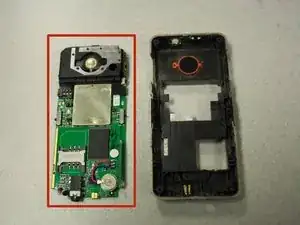

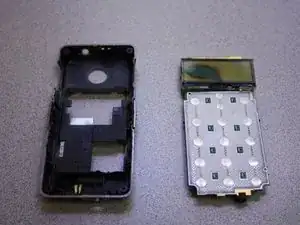

  7. JAFAMGIn5acHZg1d
    JAFAMGIn5acHZg1d
    GK1qEcFYd6Ej1I4J
    E62vDZLTWNUTaQLp

    • Separate the circuit board from the inside of the back case by prying between them with the opening tool.

    • The last picture is a view of the back of the circuit board.

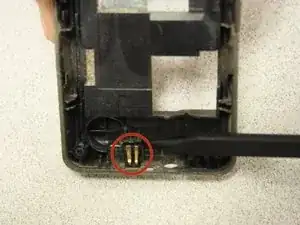

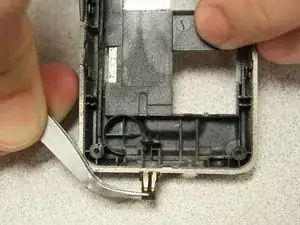

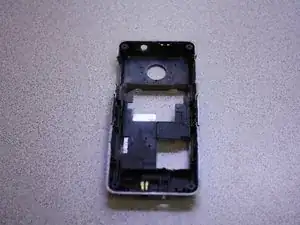

  8. BF1UQW5igGhTyWWU
    BF1UQW5igGhTyWWU
    IJcfoJXMoRxdHQuT
    CWtM14qETahnARlT

    • Use tweezers to remove the charging port located inside the back cover of the phone.

    • A spudger may be needed to apply pressure with the use of the tweezers for easier removal.

Abschluss

Insert new charging port, and to reassemble your device, follow these instructions in reverse order.
