Snapfon ez One Microphone Replacement

Geschrieben von: John Bender
  • Kommentare: 0
Snapfon ez One Microphone Replacement

Schwierigkeitsgrad

Difficult

Schritte

9

Zeitaufwand

15 - 30 Minuten

Einleitung

The microphone enables the phone to record sound from the user. The microphone has the ability to pick up sound waves and convert the sound waves into electronic signals.

  1. BTj2CAngDCYYbLlD

    • Turn off the phone to prevent data loss.

    • Press and slide the battery out to remove it.

    • Picture rights belong to Snapfon®. Picture is used for educational purposes only. No copyright infringement intended.

  2. WhDFD2MpXM1OtaTN

    • Pry the battery out with your thumb or the iFixit opening tool.

    • Make sure to properly dispose of the old battery at a recycling center.

    • Picture rights belong to Snapfon®. Picture is used for educational purposes only. No copyright infringement intended.

  3. MOmCuToAXEOZU6xS
    MOmCuToAXEOZU6xS
    OqrHjRKtrHGTLjav

    • Remove the four rubber inserts from the screw holes using a pair of tweezers.

  4. pPPgCTbapFGZDvwr
    pPPgCTbapFGZDvwr
    dLHLw1nWDVAB1LtB
    bTPMmATYmTopFrPx

    • Remove the four 3.1mm screws in the corners with a Phillips #00 screwdriver.

  5. WTyOJfpES6hA3y2B
    WTyOJfpES6hA3y2B
    xORj1JYL5wwNeQru
    POaVSENLeUQKDBnS

    • Separate the front case from the back case.

    • Remove the metal bumper from the front case’s perimeter.

  6. hVudxLb15tkiT66F

    • Pry the volume slider button out with tweezers.

    • The volume slider button may fall out during the separation of the front and back cases. This is OK.

  7. JAFAMGIn5acHZg1d
    JAFAMGIn5acHZg1d
    GK1qEcFYd6Ej1I4J
    E62vDZLTWNUTaQLp

    • Separate the circuit board from the inside of the back case by prying between them with the opening tool.

    • The last picture is a view of the back of the circuit board.

  8. uCqwjyKouDlkeKoU

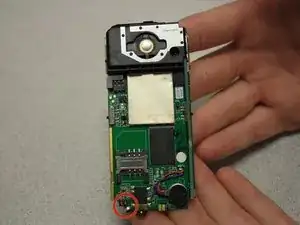

    • Locate the microphone on the back of the circuit board.

  9. el2mktNm4LpYxMSR
    el2mktNm4LpYxMSR
    RJAMP4WvUChiVTmw

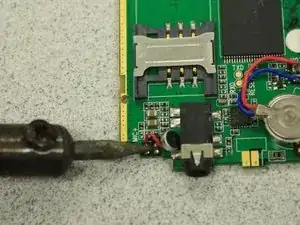

    • Desolder the microphone from the circuit board using the soldering iron.

    • The solder iron creates high temperatures that may cause bodily harm.

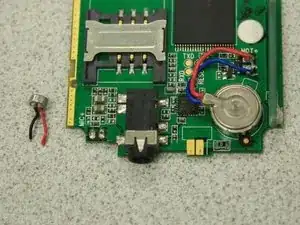

    • Take the replacement microphone and melt the wires to the circuit board with the soldering iron in the same fashion that the old microphone was oriented.

Abschluss

To reassemble your device, follow these instructions in reverse order.
