Snapfon ez One Speaker Replacement

Geschrieben von: John Bender
  • Kommentare: 0
Snapfon ez One Speaker Replacement

Schwierigkeitsgrad

Very difficult

Schritte

11

Zeitaufwand

15 - 30 Minuten

Einleitung

The speaker is the component of the phone that allows the user to hear sound emitted from the device. The speaker is part of the system that converts electrical signals into sound waves.

  1. BTj2CAngDCYYbLlD

    • Turn off the phone to prevent data loss.

    • Press and slide the battery out to remove it.

    • Picture rights belong to Snapfon®. Picture is used for educational purposes only. No copyright infringement intended.

  2. WhDFD2MpXM1OtaTN

    • Pry the battery out with your thumb or the iFixit opening tool.

    • Make sure to properly dispose of the old battery at a recycling center.

    • Picture rights belong to Snapfon®. Picture is used for educational purposes only. No copyright infringement intended.

  3. MOmCuToAXEOZU6xS
    MOmCuToAXEOZU6xS
    OqrHjRKtrHGTLjav

    • Remove the four rubber inserts from the screw holes using a pair of tweezers.

  4. pPPgCTbapFGZDvwr
    pPPgCTbapFGZDvwr
    dLHLw1nWDVAB1LtB
    bTPMmATYmTopFrPx

    • Remove the four 3.1mm screws in the corners with a Phillips #00 screwdriver.

  5. WTyOJfpES6hA3y2B
    WTyOJfpES6hA3y2B
    xORj1JYL5wwNeQru
    POaVSENLeUQKDBnS

    • Separate the front case from the back case.

    • Remove the metal bumper from the front case’s perimeter.

  6. hVudxLb15tkiT66F

    • Pry the volume slider button out with tweezers.

    • The volume slider button may fall out during the separation of the front and back cases. This is OK.

  7. JAFAMGIn5acHZg1d
    JAFAMGIn5acHZg1d
    GK1qEcFYd6Ej1I4J
    E62vDZLTWNUTaQLp

    • Separate the circuit board from the inside of the back case by prying between them with the opening tool.

    • The last picture is a view of the back of the circuit board.

  8. ZoZwwOVlP4AlLqOj
    ZoZwwOVlP4AlLqOj
    IwZsCDgXg5oHQCPu

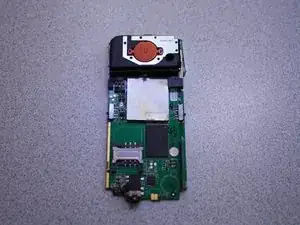

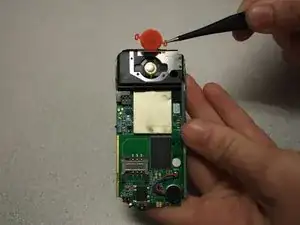

    • Remove SOS button from circuit board with tweezers.

  9. qiUrrFqB1VKbGrYI
    qiUrrFqB1VKbGrYI
    2QPQFyL1M4VVlDov
    mjIMg5LyAAxfbuLS

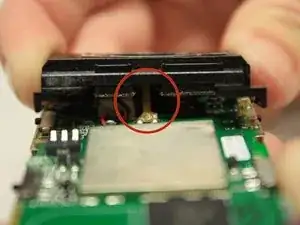

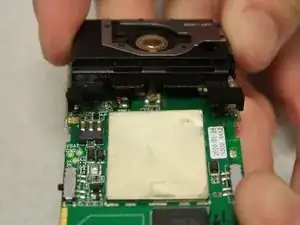

    • Pull black casing from the circuit board with fingers.

    • The black casing will not be able to be fully removed at this point

    • To fully remove the black casing, desolder the SOS button cable from the circuit board with a soldering iron.

    • The solder iron creates high temperatures that may cause bodily harm.

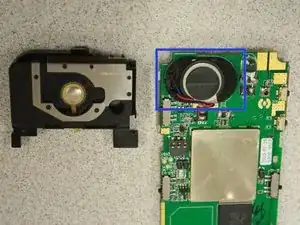

    • Once the black casing is removed, the speaker will now be exposed.

  10. 2ppDR1genjRWpcka
    2ppDR1genjRWpcka
    qtaXBWPcX2yVbbhP
    Ia1j2TEcsqLr4UAi

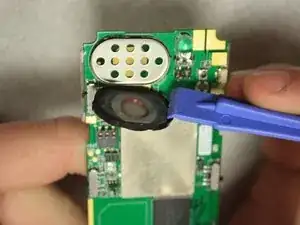

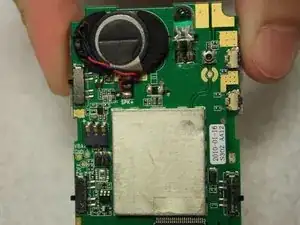

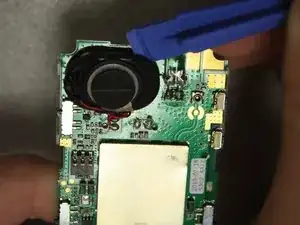

    • With the plastic opening tools, pry off the speaker from the circuit board.

  11. gudF61ItwSPQiUIp
    gudF61ItwSPQiUIp
    TPLXtGHnDojVjiNg

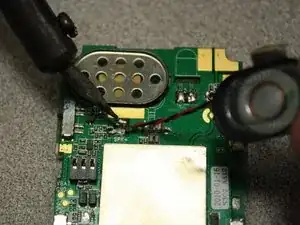

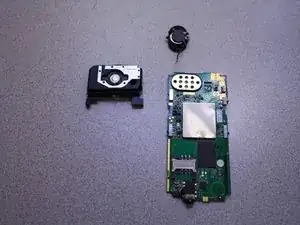

    • Desolder the speaker cables from the base of the circuit board with the soldering iron.

    • The soldering iron creates high temperatures that may cause bodily harm.

    • Melt the new speaker wires to the circuit board with the soldering iron.

Abschluss

To reassemble your device, follow these instructions in reverse order.
