This guide will instruct a person on how to replace the carbonation tube line used in the delivery of CO2.
-
-

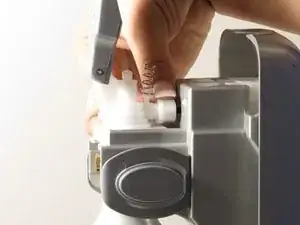

Locate the two prongs at the bottom of the button which releases the bottles (at the front of the machine).
-
Push both prongs down together; pull this part of the machine out towards you.
-
-
-

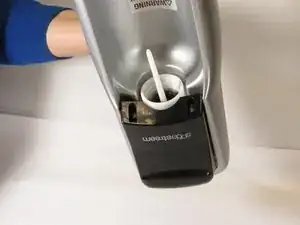

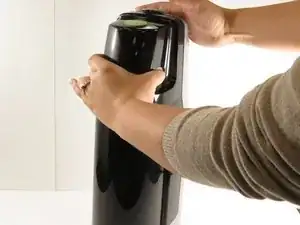

Press in the two gray oval shaped buttons found on either side.
-

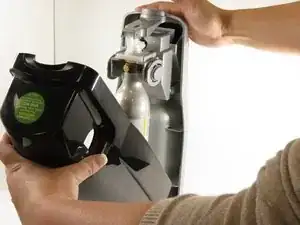

Gently pull back on the cover until it releases from the device.
-
Release the buttons and pull the back completely off.
-
-
-

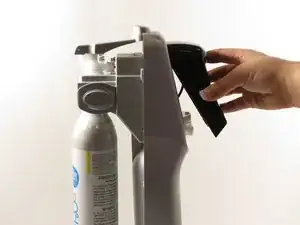

Place your hand under the carbonation button and pull up and away from you, towards the back of the machine.
-
-
-

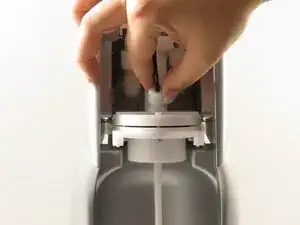

Under the carbonation button, at the end of the slim black tube will be a white cap, turn the cap in a counter clock wise motion to remove.
-

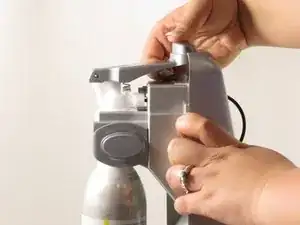

Locate the second white cap, on the front of the machine. Reattach both white caps by turning them in a clockwise direction, ensuring they are on tight.
-
-
-

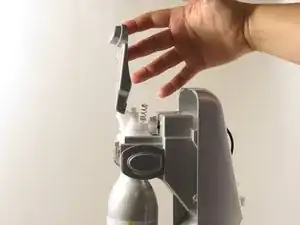

Line up the prongs on the front cover with those on the machine and gently push until in place.
-
To reassemble your device, follow these instructions in reverse order.
