This guide will be used to instruct a person how to replace the spring that controls the up and down motion of the carbonation button should it become worn over time.
-
-

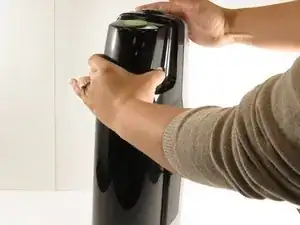

Press in the two gray buttons found on either side, at the top of the machine.
-

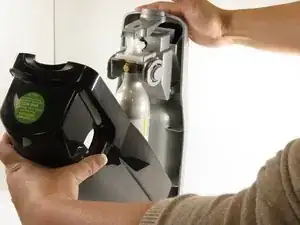

Pull back on the cover until it releases from the device and pull the back off.
-
-
-

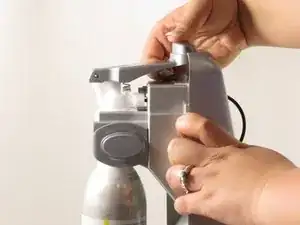

Place your hand under the carbonation button and gently pull up and away from you, towards the back of the machine.
-
-
-

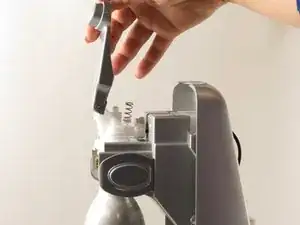

Remove the spring located under the carbonation button.
-

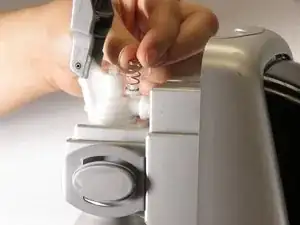

Replace with the new spring, by lining it up and pushing it down.
-
To reassemble your device, follow these instructions in reverse order.
2 Kommentare
Does anyone know where I can get a carbonation button?
draganr@wi.rr.com
draganr -
Do we know the spring parameters?
Outside Diameter
Inside Diameter
Overall Length
Wire Diameter
Total # of Coils
Active # of Coils
Solid Height
Space between the Coils
