SodaStream Source innere Gummidichtung tauschen

Geschrieben von: Alexandra I Curtis

Kommentare: 95

SodaStream Source innere Gummidichtung tauschen

Schwierigkeitsgrad

Mittel

Schritte

Zeitaufwand

45 Minuten

Einleitung

Der Soda Stream Source versetzt Wasser durch eine Düse mit Kohlensäure und kann es mit verschieden Geschmacksrichtungen mischen. Die Düse hat eine Gummidichtung, die Lecks verhindert und den Karbondosierungsblock stabilisiert, während die Maschine Mineralwasser oder Limonade macht. Falls die Dichtung beschädigt ist, tritt während des Gebrauchs Wasser aus. Dies kann durch den Austausch der Dichtung durch eine neue behoben werden. Um diese Dichtung zu wechseln, muss das Gerät von außen und innen zerlegt werden. Diese Anleitung zeigt, wie die beschädigte Dichtung freigelegt und entfernt werden kann.

Werkzeuge

Schritt 1

Entferne die Soda-Flasche und den CO²-Tank aus der Maschine.

My machine is overflowing when i put gas

Elaine Anja -

Does this article apply to the Fizzi too?

When I look at my Fizzi (that I bought secondhand), it does not have any black seal like the one shown in this article.

Greg Harrington -

Parts are not specified - why? You would need a replacement circuit board (PCB, not a "chip")/battery holder assembly, if indeed that has failed.

Malcolm Noble -

Schritt 2

Entferne die vier 17.8mm Schrauben von der unteren Metallgrundplatte mit einem Phillips #1 Kreuzschlitz Schraubendreher.

Schritt 3

Entferne die Geräteabdeckung von der Front des Geräts.

We are working on that for the last two hours without succcess. The boytom seems to slide out, but the top is totally stuck.

Robert Coles - 01/07/20

Hey Robert Coles, I figured it out. It wants to slide out backwards. You’ll notice the bottom wants to come out but the top is stuck. There is a sturdy plastic catch at the top, I managed to dislodge it by inserting a flathead screwdriver and giving it a little twist while pulling the housing away at the same time. I hope this helps! -jt

John Tennant - 02/07/20

I have the same problem.

John Tennant - 02/07/20

I’m stuck here too. I’ve pulled a lot of things apart but this has got the better of me. I can’t even get the bottom to slide. I love the way his hands are delicately poised to gently lift the back off. I’ve tried pulling so hard I’m frightened of breaking it. Pity. Such a good, well thought out manual otherwise. Stuck on step 3

damon.ormsby - 03/07/20

used two thin wood skewers to break the hold on the top. Slid them in each about 1/2” from the enter. finally released.

Brian Runyan - 26/07/20

Brian’s comment is excellent. The only additional piece of information is that the skewers should be inserted from the back. The catch is in the middle near the back. I inserted from the front which was wrong, but still worked. I left a couple of very fine marks that I think would not happen if inserted from the back.

David Balfour - 14/11/20

This step was unnecessary. I was able to slide off the front panel without pulling the outer cover off.

Matthew Dash - 14/11/20

Same for me. Jump to step4/5 first to see if it's even necessary.

jwitt72 -

there might be different variations within the same “model”. in my case (source), i realized that there is a tab at the top of of the housing. i pulled upwards the top of the housing, and was able to slide the housing backwards. there were 2 pairs of tracks on the sides of the housing that i thought they might have latches, but they were only guides to slide the housing. i do not how to share pictures here to show my steps

Salam Gabran - 10/12/20

This step was a real bugger. What helped was sliding a medium putty knife between the top and inner piece. The plastic snap is very near the back. They are right above the small “point” in the centre of the mechanism below it. Takes patience and let the plastic give way in time. I thought for sure I was going to bust it, and then it finally slid out like magic.

Scott - 14/02/21

Didn’t work I think they glued it shut to keep us from prying.

Janey Kim - 23/05/21

This step is only useful if you need to retension the two springs that lift the head and releases the pressure so that you don't have to lift it manually to get the bottle out.

till_vidar -

There are definitely different model variations. The outer metal case on my 2013 is split at the bottom as in this guide. The plastic case on my 16/17 is different an has the catch at the top rear as discussed in this thread. A gentle push up with my thumbs was enough to release it.

Darryl Marko -

I gave up on this step after 5 mins, but I found for my model it could be skipped and just go to step 4. For step 5, with a flathead screwdriver it came off easily and exposed the battery for replacement. Worked fine afterwards.

jwitt72 -

There is no need for steps 1, 2 and 3. Start at 4, and just remove the two screws from the front square that you push down. Use a tool to firmly pull the cover off and go ahead and replace the battery. Put back the cover, the two screws and you are done!

MarianaFre -

Schritt 4

Entferne die zwei 18.2mm Schrauben von der Unterseite der Frontabdeckung mit einem Phillips #1 Kreuzschlitz Schraubendreher.

Schritt 5

Entferne die Abdeckung, indem du kräftig daran ziehst.
Dieses Teil ist schwierig zu entfernen und erfordert einiges an Kraftaufwand. Es kann helfen, ein breites, dünnes Werkzeug zu benutzen, um es aufzuhebeln (wie zum Beispiel einen Jimmy).

The plastic spudgers that are supplied for mobile phone or tablet screen removal are perfect for this job. Use 2 - 1 on each side.

David Balfour - 14/11/20

Once the 18.2 mm screws are removed, I just pulled the black plastic outer cover a couple mm away from the white plastic internal block on each side to release 4 of the 6 plastic catches, and then rotated upward to release the last 2 plastic catches.

Tony Hartshorn - 11/04/21

Schritt 6

Schiebe die Messingstange, die sich am oberen Ende des Geräts befindet, heraus aus dem "Sprudel-Block".
Du kannst die Spitze eines Schraubendrehers benutzen, um das Teil auszudrücken.

We could,remove this covee, without sliding the assembly out ofbthe case. There was NO gold bar in the system…

Robert Coles - 01/07/20

….. no gold bar either in my device…. ??????

hbergeron - 30/12/20

Schritt 7

Schiebe die gelbe Akku-Abdeckung nach oben, um sie vom Gerät zu entfernen.

Careful! I had springs and retainers go flying on this step

Felicia Renaud - 31/08/20

Yep…same here. Took me a good minute to figure out where they came from!?

Rodney Davis - 27/03/21

Fun fact: The lights on the SodaStream are simply a timer. They are in no way linked to a pressure gauge. If you want more bubbles it doesn't mean you have to press on the activation mechanism harder. you can press gently and just wait longer. This way the water will not spill out over the top and leak all over the table. Ignore the lights and just wait for the safety release valve to activate as you are filling the bottle. that's how you know you have reached the limit.

Ken Ostrovsky -

Schritt 8

Hake das untere Ende des Plastikarms auf beiden Seiten des Gerätes aus.

Schritt 9

Hebe das obere Ende des Plastikhebels mit einem Spudger an und entferne das Bauteil auf beiden Seiten.

Slot screwdriver works just fine for these next two steps

Scott - 14/02/21

Schritt 10

Entferne das Plastikstück, das sich ziemlich weit vorne auf dem "Sprudel-Block" befindet, mit einem Plastiköffnungswerkzeug oder einem Nylon-Spudger.

Be careful…they will fly off across the room!

Rodney Davis - 27/03/21

Schritt 11

Entferne das Plastik-Oval und die Feder darin.

Do not have this piece on mine?

ronkellington - 11/12/20

nor do I. They must have made some changes.

Scott - 14/02/21

This piece exists on my 2013 metal chassis version, but not on my 2016/17 plastic chassis.

Darryl Marko -

Schritt 12

Ziehe die Abdeckung der Flaschenaufnahme nach unten und weg vom Sprudler-Block.

Schritt 13

Entferne die drei 17,9 mm Schrauben auf der rechten Seite.
Es kann schwer sein, an diese Schrauben heranzukommen.

Should this be four screws? I followed all directions (I think) and had one extra screw to remove, just above the bottle mount, before I could split the two halves apart

Phil Wilkes - 02/06/20

Yes I had a 4th screw at this step too. Going backwards the missing fourth screw in the instruction messed me up and I had to redo it!

Daniel Sylvester - 28/07/20

Yes the 4th screw still isn't mentioned - and just below it is the rare-earth magnet that can fall out when the halves are separated. This magnet activates the LEDs when the carbonating block is pushed down - no magnet, no lights.

Malcolm Noble -

Schritt 14

Löse die vier Clips oben am Sprudlerblock und entferne die Plastikabdeckung.

Schritt 15

Hebe die Clips, die sich auf beiden Seiten befinden mit einem Plastik-Spukger an. Entferne die vordere Abdeckung .

Schritt 16

Löse die Federarme auf beiden Seiten des Gerätes, indem du sie nach unten drückst.

Schritt 17

Ziehe die rechte und linke Seite des Geräts und trenne sie in zwei identische Hälften.
Wenn du diese zwei Teile getrennt hast, fallen alle übrigen internen Komponenten aus dem Gerät.

what happens to the middle white piece?

Noah Langer - 25/04/20

Yeah there's a step missing here…between 17 & 18

Daniel Sylvester - 27/07/20

Is it better to lay it on its side?

Gareth White - 05/11/20

I hope someone will document the missing step of what it looks like if you separate the halves without having all the parts fall out.

What does it look like and where do they go? Kinda' important for reassembly.

Joe -

I've added a photo to this step showing just this, fingers crossed it gets approved

lizzbeeton -

Liz - would you post a link to your pic here so we can see it even though it's not approved yet?

Joe -

Re: "missing step"

On the newer models, (at least 2016/17) the valve is attached to the left side and it's two Phillips head screws must be removed.

These instructions are correct for earlier models where the valve is in the middle, so there is no missing step.

Darryl Marko -

Se voce deitar o aparelho com cuidado, nada cairá e as peças ficarão no lugar

J.Poppa -

Thanks to this guide, I’ve taken a part my SodaStream Source a few times now. Like others have mentioned, during reassembly, this step tripped me up every time. It’s definitely missing details about the part orientation. I took some additional photos in efforts to help others. Please find the album here.

Mitch -

Thanks Mitch!! That's exactly what I needed! been pulling my hair out trying to figure out how that white piece went back in.

KayLynn Mathews -

You’re very welcome! I’m so glad it helped you out!

Mitch -

Schritt 18

Ziehe die Schaumstoff-Abdeckung nach oben und entferne sie von der Vorderseite des Sprudel-Elements.

Any source for spare parts known? Ebay and Amazon does not help here!

lutz Ziffer - 07/02/21

no foam pad on mine either

Scott - 14/02/21

What is the name of the part that is in blue? Mine is broken and I would like to replace it

Tony R - 12/04/21

The part on mine that was broken is the plastic cap/nut that connects the black hose to the canister holder.

Going to try and superglue it. Wonder if there's a source for this nut?

Joe -

I wish it was that simple. The hose has a brass ferrule crimped on it, and the nut cannot be replaced without being able to remove and crimp a new ferrule to the (new?) hose. I have found a listing (eBay Europe?) for a split brass nut that allows replacement, but...

https://www.google.com/url?sa=t&source=w...

https://picclick.co.uk/Messing-Mutter-f%...

Darryl Marko -

Schritt 19

Entferne die sechs 17,7 mm Schrauben von der Unterseite der Flaschenaufnahme.

Schritt 20

Ziehe die Flaschenaufnahme aus der Sprudlerdüse.

Dove posso acquistare il tubo dell'aria del gasatore?

zorzi.corrado2 -

Schritt 21

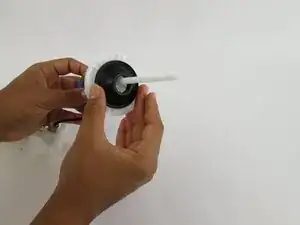

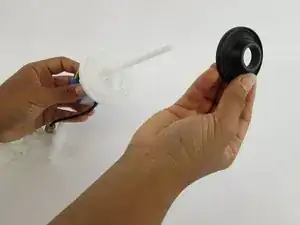

Entferne die Gummidichtung der Düse und ersetzte sie durch die neue Dichtung.

Where to buy a new seal?

dtfodstad - 30/01/21

Vanskelig å få kjøpt ny pakning . Det virker som Sodastream prøver å hindre at kunder reparer maskinen sin. Bedriften vil at man kjøper ny. Det er lite miljøvennlig!

dtfodstad - 30/01/21

Hallo

wo kann ich mit welcher Ersatzteilenummer diese Dichtung kaufen?

Benz Weibel -

Anyone have a link on where to buy a seal????

digitalbilly -

My screw driver pulled a tiny silver magnet from somewhere in the last step. Any suggestions where this came from

Warren Gibbins -

This is a rare-earth magnet that triggers the LED circuit when the carbonating block is pushed down. The LED lights will not work without it. The magnet slots into a cavity just below the screw that holds the 2 halves of the unit together at the front (approximately level with the operator's thumbs in Step 17 pic). NOTE: there appears to be no mention of removal of this screw in the guide. The magnet is only accessible when the halves are separated. I replaced one recently that had reduced magnetism due to corrosion, probably from fluid escaping past the internal rubber seal. And no, I don't know where to buy the seals - the web is flooded with seals for the gas bottle but not this one.

Malcolm Noble -

Abschluss

Um dein Gerät wieder zusammenzubauen, folge der Anleitung in umgekehrter Reihenfolge.
