Sol Republic Deck Bluetooth Button Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

Keine Schätzung

Einleitung

This guide will teach you how to replace the Bluetooth button on the Sol Republic Deck.

  1. creToOACRgrYTTmg

    • With plastic spudger wedge in between the top and bottom casings to force sepearation . Exposing the inside components of the Republic Deck.

  2. FSaFm3IKqeASKZim

    • Use the screwdriver to unscrew two 3.6mm Phillips #0 screws securing the plastic plate.

  3. 4HCIQcVlurfv1KiS

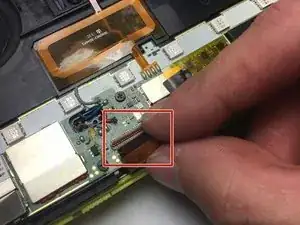

    • Remove the ribbon cable from the circuit board.

  4. hW3D2YmK4EfMoCek

    • Plug in de-soldering kit and wait 3 minutes for the solder to heat up.

    • Use the tip of your soldering iron to heat the old solder unit and apply until it melts.

    • Remove speaker wires connecting the speaker to the circuit board.

  5. Cxyn5OFwjdBEMmWV

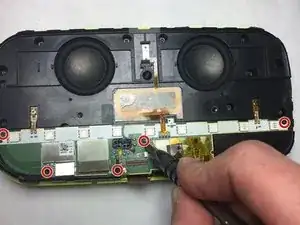

    • Unscrew five 3.6 mm Phillips #0 screws securing the circuit board.

  6. b3TIl6PKeeX5nG3j

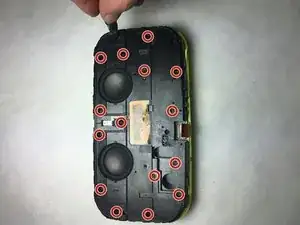

    • Unscrew fifteen 6.2mm Phillips #0 screws and lift the black plastic plate from the case.

  7. GtvtX3JbD6Lig2Tq
    GtvtX3JbD6Lig2Tq
    jAEmy6kGSJaMvfHD

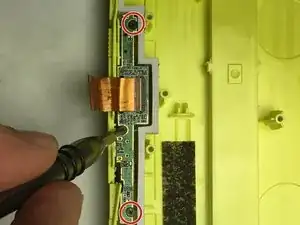

    • Remove the three 3.6mm Phillips #0 screws.

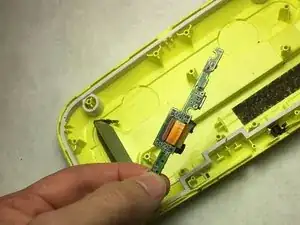

    • Remove the circuit board containing the BlueTooth button.

    Thank you. I tried to give you points but it looks like you declined? Hey, don't sweat it. If we can't finish thus on our own we shouldn't be meeting stuff up!!!

    Jason “jbyrd” Fodor -

Abschluss

To reassemble your device, follow these instructions in reverse order.
