Einleitung
The LED lights on the speaker are what make the letters SOL light up multicolored when powering on the device. Within the device, these lights are held in place by a white strip attached to the motherboard.
Werkzeuge
-
-

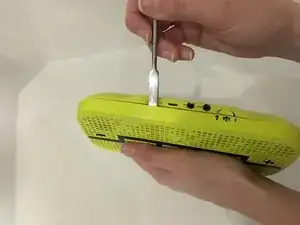

Insert the tip of a plastic opening tool or spudger into the the middle groove along the edge of the device.
-
Insert another opening tool into the groove to hold the front plate up as you separate both plates on all sides. Use multiple opening tools to keep plates separated if necessary.
-
-
-

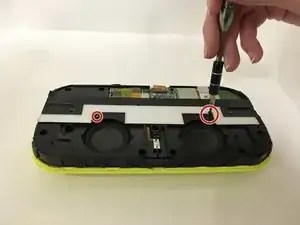

Using a PH00 screwbit, unscrew the two three-tenth cm screws and remove them.
-

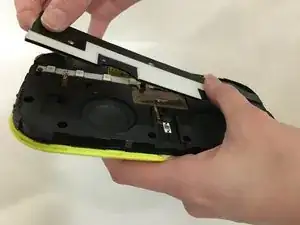

Once the screws have been removed, lift the SOL plate revealing the LED Light strip.
-
-
-

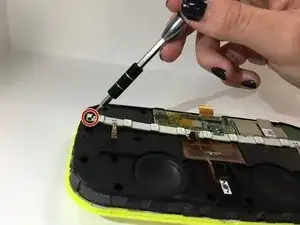

Using a PH00 screwbit, unscrew the two three-tenth screws that hold down the LED light strip at both ends.
-
-
-

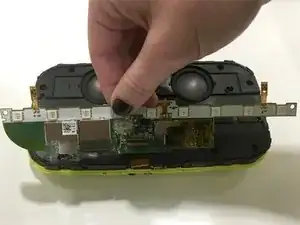

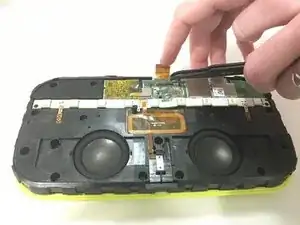

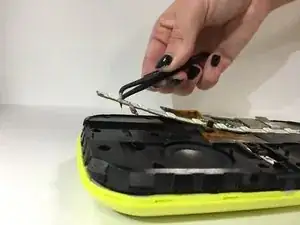

Once unscrewed, the LED light requiring repair can be accessed by lifting up the entire LED light strip with tweezers.
-
To reassemble your device, follow these instructions in reverse order.
