Sol Republic Deck Speaker Replacement

Geschrieben von: Jonathan Holtman
  • Kommentare: 3
Sol Republic Deck Speaker Replacement

Schwierigkeitsgrad

Difficult

Schritte

8

Zeitaufwand

10 - 15 Minuten

Einleitung

This guide will teach you how to replace the speakers for the Sol Republic Deck.

  1. Nfbula3YaDEkWCep

    • With plastic spudger wedge in between the top and bottom casings to force sepearation . Exposing the inside components of the Republic Deck.

  2. AEVsAcUUPrfkkrbW

    • Use the screwdriver to unscrew 2 3.63mm Phillips #0 screws securing the plastic plate.

  3. dcVFDhHKTyIVPDVO

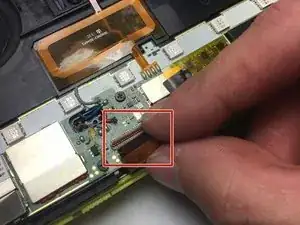

    • Unplug the ribbon cable from the port.

    You also have to remove the solders of the cables to the top left of those fingers.

    Artemio Rodriguez -

  4. LwtPXomCqcGMBufe

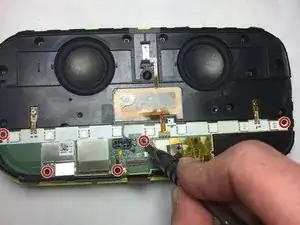

    • Unscrew 5 3.63 mm Phillips #0 screws securing the circuit board.

  5. iJN6XqxMbpnTovBG

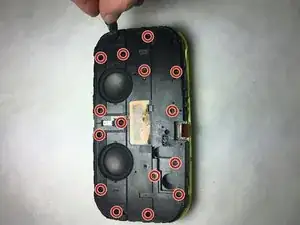

    • Unscrew 15 6.15 mm Phillips #0 screws and lift the black plastic plate from the case.

  6. 4TpeSAqyroV6O22O

    • Remove 4 3.63 mm Phillips #0 screws holding the bracket.

  7. rBogKxPQDGRGKDBf

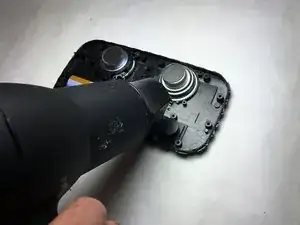

    • Use the hairdryer to soften the glue holding the speaker to the plastic plate.

    Do you know where to buy replacement speakers?

    Stephen Villamin -

    thats a good question

    marvineflores -

  8. MElCP3SNTJGBnVdr

    • Gently pull up on the speaker.

Abschluss

To reassemble your device, follow these instructions in reverse order.
