Sonos Connect Bottom Motherboard Replacement

Geschrieben von: Clark Snyder
  • Kommentare: 5
Sonos Connect Bottom Motherboard Replacement

Schwierigkeitsgrad

Difficult

Schritte

17

Zeitaufwand

2 Stunden

Einleitung

There are two boards for the device, a green top level and a blue lower level. This guide will show the steps to replace the bottom motherboard.

Metal spudgers and similar pry tools can puncture an unprotected battery, potentially causing a fire. When working with electronics, it's important to choose a tool that's ESD-safe to avoid accidental damage to the device. The metal spudger is great when you need serious prying power, but the regular black nylon spudger or a plastic opening tool should be used whenever possible.

  1. t3ilfDa1PNBQUnUG
    t3ilfDa1PNBQUnUG
    OaGRZiLqQFBGPdoF
    WViytRuORo34N2DC

    • Start by using a spudger or plastic opening tool to remove the bottom cover.

    • When working with electronics, it's important to choose a tool that's ESD-safe to avoid accidental damage to the device. The regular black nylon spudger or a plastic opening tool should be used whenever possible.

    • Once enough of the glue is removed, peel the cover off by hand,

    Careful as the rubber bottom rips extremely easily. Be very patient.

    marcos_peixoto1 -

  2. 4pLla12ZHRecHYWQ
    4pLla12ZHRecHYWQ
    D1Kg3jN4CUKMpRVD
    5HF54JLPJvFe1XEq

    • Remove the four 7.5mm length Philips head screws under the rubber cover.

  3. C1WM6TTTMXjKIe1C
    C1WM6TTTMXjKIe1C
    HVY622r6r3TmS5Rg
    yCxZiQgjbvFKtfQb

    • Use a nylon spudger to unsnap the bottom from the sides.

    • Pry until the remaining three points are unsnapped.

    • Once unsnapped, lift the cover.

  4. qWwnSunJaGytUXrB
    qWwnSunJaGytUXrB
    1SiMcPQItDhAQT4C

    • Remove the connection for the front buttons to fully remove the cover.

  5. AnwVh5pBJqVHD5dJ
    AnwVh5pBJqVHD5dJ
    YoYMHqvXvLsSMh2Z

    • Use a plastic opening tool or spudger to remove the adhesive covering the the WIFI connectors.

    • Gently pull the wires at the connection point to disconnect them from the motherboard.

  6. fAqRmmsGB2EPo1yN
    fAqRmmsGB2EPo1yN
    WAMnDngSTNydhoC5

    • Remove the two pieces of glue holding the WIFI card in place.

  7. PkQvAEJxofVQaLTi
    PkQvAEJxofVQaLTi
    CRjYYjhjteJaJE4B
    3Mq1AvOqhPhQnNDa

    • Scrape the glued pad underneath the WIFI card to seperate the card from the board.

    • Push apart the two clips holding the WIFI card in the connection.

    • Pull the WIFI card out of the connection.

    • When putting the new WIFI card in, put the card in the connector first, then push downward until it clicks.

  8. FJdqxUNQglrETsOJ

    • Remove the 7mm length Phillips screw holding the board in place.

  9. uPeBHYUUIFPKEG6g
    uPeBHYUUIFPKEG6g
    TtaNQeTYXMIhvsU5

    • Flip the board over to access the Molex Cable.

  10. NiASugHTMpyEgKtK

    • Disconnect the Molex Cable from the top motherboard.

  11. WwycsqSAUQiQOLUs
    WwycsqSAUQiQOLUs
    yVkpIEAhURMVRgsu

    • Remove foam protective insulator from the bottom board.

  12. J12ooOgXxMkJeywc
    J12ooOgXxMkJeywc
    xMDem1CQhHBZ5KbV

    • Picture shows the side of the device.

    • Remove the 7mm length Phillips screw from the power supply motherboard.

  13. FalKTLfCigsBVNrL
    FalKTLfCigsBVNrL
    kD2dnAMqHXvilpBl
    KqRKS5toGng22fAq

    • Remove the adhesive backed rear label by using a spudger.

    • Remove the two 8mm length screws as shown.

  14. OUGWyjCRwcWsfEOa
    OUGWyjCRwcWsfEOa
    v6ZO4ssuKRW2Vbrn

    • Pull the power supply out of the back of the device.

    Were to order a power suply from the Sonos connect??

    rickjonkman @ Hotmail.com

    thnx!!

    Rick Jonkman -

    Does anyone please know what the 4 coloured power wires in the Molex are, in terms of 12v, A rating and + or - ? Many thanks.

    dhroser -

    values are printed on the PCB: -

    Red: 3.3v+

    Black 3.3v GND

    Yellow 14.8v+

    Brown 14.8v GND

    Andy -

  15. jPARnAnQZDcZWCNA
    jPARnAnQZDcZWCNA
    o6qqtFSrppsSA1i2

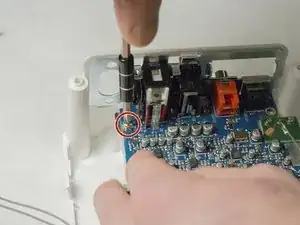

    • Remove the two 7.5mm length screws on the top of the board.

  16. 31CvYjA2wHkEpeTB

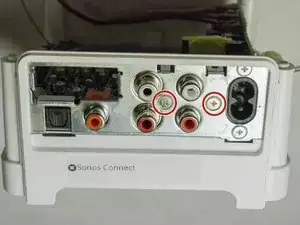

    • Remove the other two 8mm length screws on the back of the device. You might have already removed the screws for the power supply, and that's OK!

  17. AiRruBSJroonnLX6

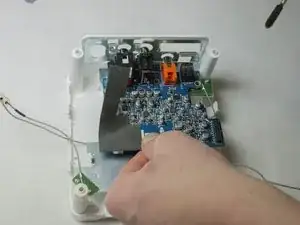

    • Slide the board out from the plastic casing.

    • You must pull the board out from back to front, because of the plugs on the back of the board.

Abschluss

To reassemble your device, follow these instructions in reverse order.
