Sonos One Mid-Woofer Diaphragm Repair/ Replacement

Geschrieben von: Marcus Glowa
  • Kommentare: 4
Sonos One Mid-Woofer Diaphragm Repair/ Replacement

Schwierigkeitsgrad

Moderate

Schritte

21

Zeitaufwand

10 Minuten

Einleitung

This guide is for the replacement of the woofer diaphragm for the Sonos One.

Important: Accessing the internals of the Sonos One will void the factory warranty and make the unit rejected for factory repair, even if warranty is expired.

  1. usaBbBDLJNDfWMdm
    usaBbBDLJNDfWMdm
    FZK3GRjl32PXic3a
    y1YasRcElZVao6pC

    • Disconnect all power cords.

    • Remove the rubber foot and plastic screw guard on the bottom of the device using a plastic opening tool.

    • Note: the rubber foot and plastic screw guard can be removed as one piece to make reassembly easier

  2. 4EkQjavLKByFVJVE
    4EkQjavLKByFVJVE
    Wc1uefX2jiRMYr1H
    DXykovl1MOrqFTqe

    • Remove the four 10mm Torx T10 screws from the bottom of the speaker.

  3. MRXUMkYRPc26bSqp
    MRXUMkYRPc26bSqp
    s4HJvieC1YruHify

    • Remove the bottom cover by squeezing the protective cover slightly while pushing up with your fingers.

  4. FbUStLbNAKGaxOWg
    FbUStLbNAKGaxOWg
    Uaq4wNCVYhPPCrxg
    HB36AKuFlDDSmAMt

    • The protective cover clip is very thin and deforms easily.

    • Remove the single 8mm Torx T10 screw and protective cover clip.

  5. 1DHmTOL1GUkrko1U
    1DHmTOL1GUkrko1U
    mbw2scALRUrUHfCY

    • Slide the protective cover upwards to remove.

  6. DVMQO3Ux5FUiKlbm
    DVMQO3Ux5FUiKlbm
    WBlukvcgecJLInYe
    X443TR1cbUuL4KDG

    • Use the pointed end of a spudger to remove the covers that hide the screws.

    • Remove the four 9mm Torx T8 screws from around the perimeter of the control panel.

  7. 2jSXDFRhoxbVsYke
    2jSXDFRhoxbVsYke
    p5HvKERKpEVy2Rsl

    • With the front of the unit facing you, lift the control panel up using your thumbs.

    • There's a ribbon cable attaching the control panel to the speaker so work slowly.

  8. XKhcG4CFIEcNsSwA
    XKhcG4CFIEcNsSwA
    R3FKbQqfmeLWpj3m
    DDeZMtSBBIw33W4E

    • Use a spudger to flip up the retaining flap on the control panel ribbon cable ZIF socket.

    • Pull the control panel ribbon cable out of its socket.

  9. 33WnTAYj6YnZirkH
    33WnTAYj6YnZirkH
    CSqBC3XQoNTUwniR

    • Pull the control panel away from the speaker to separate.

  10. CmYiWAUCmvnSZYFP
    CmYiWAUCmvnSZYFP
    lEmPJlHQENEfUEQG
    dHUHaoKuLTHdpQFk

    • Remove the six 9mm Torx T8 screws from the motherboard panel.

  11. qAhVvMibZZUBAACc
    qAhVvMibZZUBAACc
    T3SVxCcfwy4kgnHE

    • Using a plastic opening tool, separate the motherboard from the speaker.

  12. UyE3wCYZgZGKOnIq
    UyE3wCYZgZGKOnIq
    AaCylYQoTfXK1ceI
    QiEs2wqMKONJ3rMC

    • Using your thumb, disconnect the speaker cable from the motherboard.

  13. 3CiUI41SO1NlE6wI
    3CiUI41SO1NlE6wI
    TQ1RXF6uYfOPppa3
    GwBSHlBDDAqcdfbK

    • Disconnect the power adapter plug from the motherboard using your thumb.

  14. 33lNbuKMiiQKdXA1
    33lNbuKMiiQKdXA1
    idnaIWJ6eOmLko2h
    funTrPKlN3HwsjT1

    • Using the pointed end of the spudger, disconnect the red, green, and yellow cables connecting the WiFi transmitter/receiver.

  15. WM3pZ3BfuHZAqLVW
    WM3pZ3BfuHZAqLVW
    usMXNmK3CrGGiabS

    • Remove the motherboard panel from the speaker housing.

  16. BDGKGVCphn45tZMg
    BDGKGVCphn45tZMg
    23LaZqrqwU2igxfF
    AVgrrWlGhQF1sIuu

    • The woofer is highly magnetic, making removal of the metal screws sometimes difficult.

    • Remove the two 9mm Torx T8 screws from the power adapter plug.

    • Remove the power adapter receptacle from its housing slot.

    Brilliant, incredibly helpful. Somehow the adapter had come out of its slot. All working now. Thanks!

    Jolyon -

  17. tbituuNaliSQWJsP
    tbituuNaliSQWJsP
    f6ZZqYKedvJKULUI
    UEtJGaLFTpN2Dxds

    • Disconnect the woofer cables.

    • If removing the tabs is difficult, the flat end of the spudger may be used to depress the middle tab and then the tab may be pulled to disconnect.

  18. ZvcpnpXmJ2ZNNQXW
    ZvcpnpXmJ2ZNNQXW
    oCrx1SvBDjR65KJL
    Gfwg6ZN2KuslbvxL

    • Disconnect the cables from the tweeter.

  19. pCZAUgVpKRx6gRQC
    pCZAUgVpKRx6gRQC
    LGM6UNeGtjoQsvZA
    dO2L5Kprjfc2ayr3

    • Remove the four 10mm Torx T10 screws from the tweeter.

    • Remove the tweeter from the speaker housing.

  20. Kp2thfNtwFRPaBJ2
    Kp2thfNtwFRPaBJ2
    jsCNciuksT4WeusB
    FdnOILuTMOjcO4cH

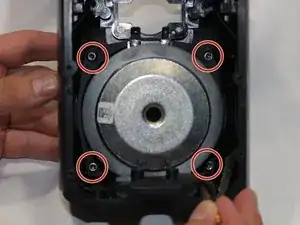

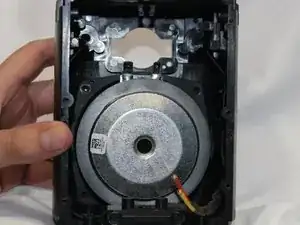

    • Remove the four 10mm Torx T10 screws from the woofer.

    My screws were T20

    hoody -

  21. rC6GrdaTEMHkb1Ti
    rC6GrdaTEMHkb1Ti
    eEOwGyg3ExrRLfUQ
    1ufsQbZ5SQCNrKFM

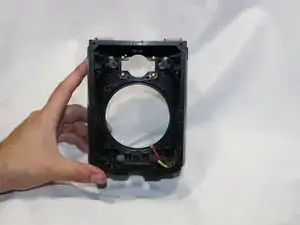

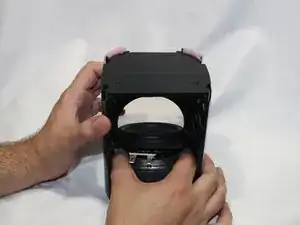

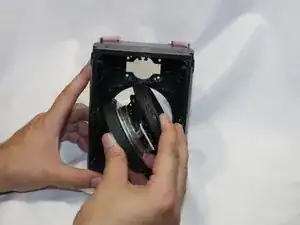

    • The woofer is snuggly fit into the frame socket, some careful manipulation is required to remove the woofer from the housing.

    • Remove the woofer from the speaker housing.

Abschluss

To reassemble your device, follow these instructions in reverse order.
