Sonos One Power Adapter Replacement

Geschrieben von: Marcus Glowa
  • Kommentare: 1
Sonos One Power Adapter Replacement

Schwierigkeitsgrad

Easy

Schritte

16

Zeitaufwand

5 Minuten

Einleitung

This guide is for the replacement of the power receptacle for the Sonos One.

Important: Accessing the internals of the Sonos One will void the factory warranty and make the unit rejected for factory repair, even if warranty is expired.

  1. usaBbBDLJNDfWMdm
    usaBbBDLJNDfWMdm
    FZK3GRjl32PXic3a
    y1YasRcElZVao6pC

    • Disconnect all power cords.

    • Remove the rubber foot and plastic screw guard on the bottom of the device using a plastic opening tool.

    • Note: the rubber foot and plastic screw guard can be removed as one piece to make reassembly easier

  2. 4EkQjavLKByFVJVE
    4EkQjavLKByFVJVE
    Wc1uefX2jiRMYr1H
    DXykovl1MOrqFTqe

    • Remove the four 10mm Torx T10 screws from the bottom of the speaker.

  3. MRXUMkYRPc26bSqp
    MRXUMkYRPc26bSqp
    s4HJvieC1YruHify

    • Remove the bottom cover by squeezing the protective cover slightly while pushing up with your fingers.

  4. FbUStLbNAKGaxOWg
    FbUStLbNAKGaxOWg
    Uaq4wNCVYhPPCrxg
    HB36AKuFlDDSmAMt

    • The protective cover clip is very thin and deforms easily.

    • Remove the single 8mm Torx T10 screw and protective cover clip.

  5. 1DHmTOL1GUkrko1U
    1DHmTOL1GUkrko1U
    mbw2scALRUrUHfCY

    • Slide the protective cover upwards to remove.

  6. DVMQO3Ux5FUiKlbm
    DVMQO3Ux5FUiKlbm
    WBlukvcgecJLInYe
    X443TR1cbUuL4KDG

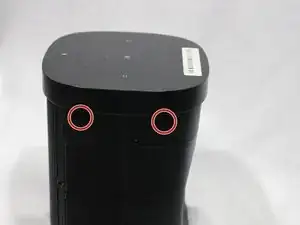

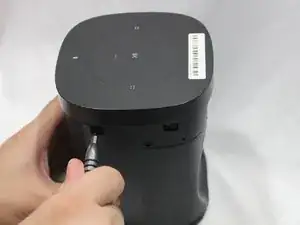

    • Use the pointed end of a spudger to remove the covers that hide the screws.

    • Remove the four 9mm Torx T8 screws from around the perimeter of the control panel.

  7. 2jSXDFRhoxbVsYke
    2jSXDFRhoxbVsYke
    p5HvKERKpEVy2Rsl

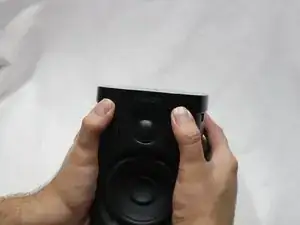

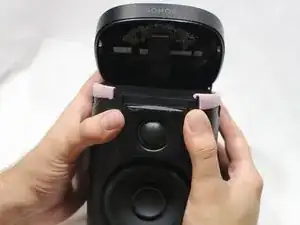

    • With the front of the unit facing you, lift the control panel up using your thumbs.

    • There's a ribbon cable attaching the control panel to the speaker so work slowly.

  8. XKhcG4CFIEcNsSwA
    XKhcG4CFIEcNsSwA
    R3FKbQqfmeLWpj3m

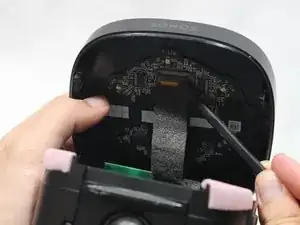

    DDeZMtSBBIw33W4E

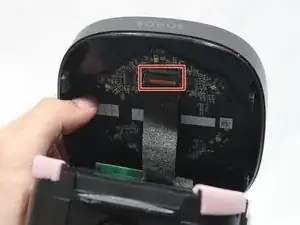

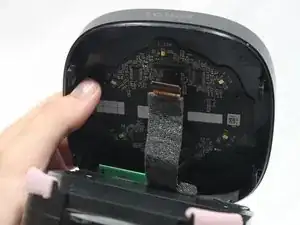

    • Use a spudger to flip up the retaining flap on the control panel ribbon cable ZIF socket.

    • Pull the control panel ribbon cable out of its socket.

  9. 33WnTAYj6YnZirkH
    33WnTAYj6YnZirkH
    CSqBC3XQoNTUwniR

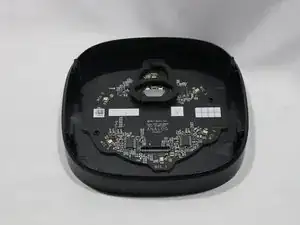

    • Pull the control panel away from the speaker to separate.

  10. CmYiWAUCmvnSZYFP
    CmYiWAUCmvnSZYFP
    lEmPJlHQENEfUEQG

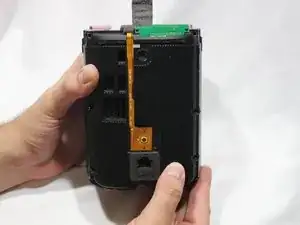

    dHUHaoKuLTHdpQFk

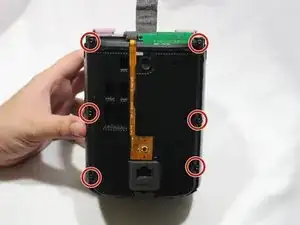

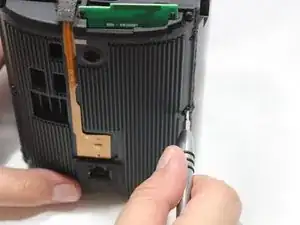

    • Remove the six 9mm Torx T8 screws from the motherboard panel.

  11. qAhVvMibZZUBAACc
    qAhVvMibZZUBAACc
    T3SVxCcfwy4kgnHE

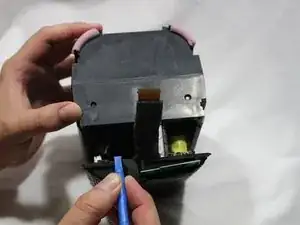

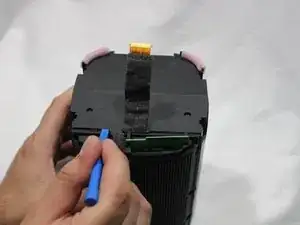

    • Using a plastic opening tool, separate the motherboard from the speaker.

  12. UyE3wCYZgZGKOnIq
    UyE3wCYZgZGKOnIq
    AaCylYQoTfXK1ceI
    QiEs2wqMKONJ3rMC

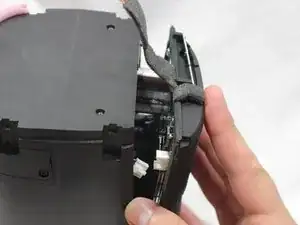

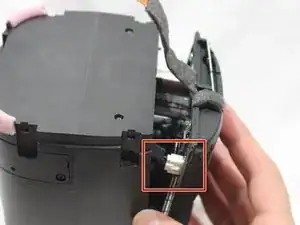

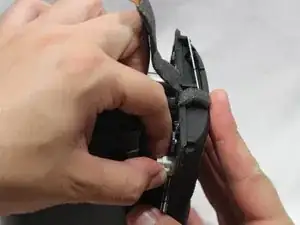

    • Using your thumb, disconnect the speaker cable from the motherboard.

  13. 3CiUI41SO1NlE6wI
    3CiUI41SO1NlE6wI
    TQ1RXF6uYfOPppa3

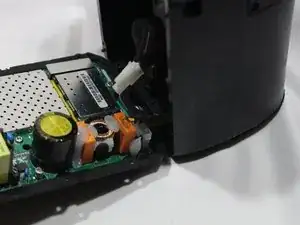

    GwBSHlBDDAqcdfbK

    • Disconnect the power adapter plug from the motherboard using your thumb.

  14. 33lNbuKMiiQKdXA1
    33lNbuKMiiQKdXA1
    idnaIWJ6eOmLko2h

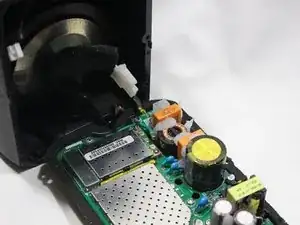

    funTrPKlN3HwsjT1

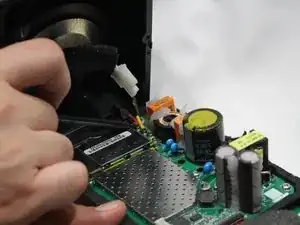

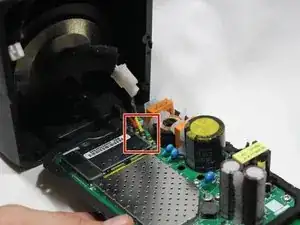

    • Using the pointed end of the spudger, disconnect the red, green, and yellow cables connecting the WiFi transmitter/receiver.

  15. WM3pZ3BfuHZAqLVW
    WM3pZ3BfuHZAqLVW

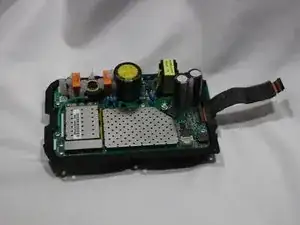

    usMXNmK3CrGGiabS

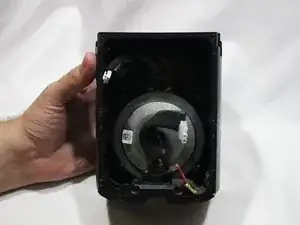

    • Remove the motherboard panel from the speaker housing.

  16. BDGKGVCphn45tZMg
    BDGKGVCphn45tZMg
    23LaZqrqwU2igxfF
    AVgrrWlGhQF1sIuu

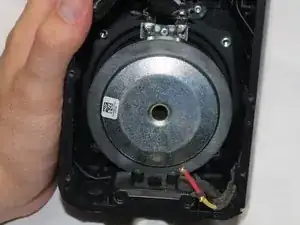

    • The woofer is highly magnetic, making removal of the metal screws sometimes difficult.

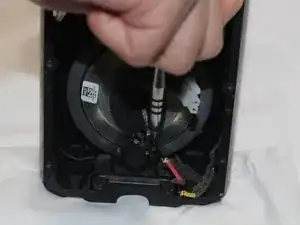

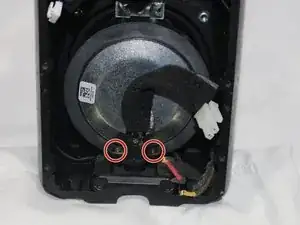

    • Remove the two 9mm Torx T8 screws from the power adapter plug.

    • Remove the power adapter receptacle from its housing slot.

    Brilliant, incredibly helpful. Somehow the adapter had come out of its slot. All working now. Thanks!

    Jolyon -

Abschluss

To reassemble your device, follow these instructions in reverse order.
