Sonos One Protective Cover Replacement

Geschrieben von: Marcus Glowa
  • Kommentare: 1
Sonos One Protective Cover Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

2 Minuten

Einleitung

This guide is for the replacement of the metal housing for the Sonos One.

Important: Accessing the internals of the Sonos One will void the factory warranty and make the unit rejected for factory repair, even if warranty is expired.

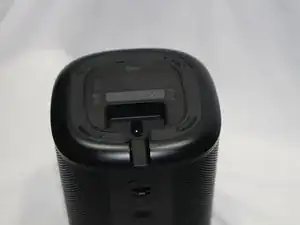

  1. usaBbBDLJNDfWMdm
    usaBbBDLJNDfWMdm

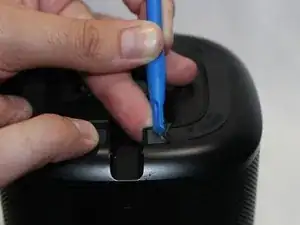

    FZK3GRjl32PXic3a

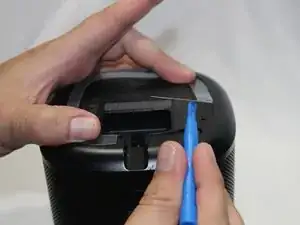

    y1YasRcElZVao6pC

    • Disconnect all power cords.

    • Remove the rubber foot and plastic screw guard on the bottom of the device using a plastic opening tool.

    • Note: the rubber foot and plastic screw guard can be removed as one piece to make reassembly easier

  2. 4EkQjavLKByFVJVE
    4EkQjavLKByFVJVE
    Wc1uefX2jiRMYr1H
    DXykovl1MOrqFTqe

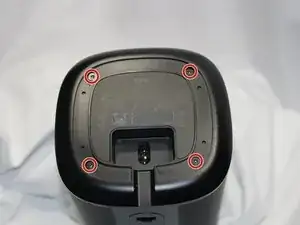

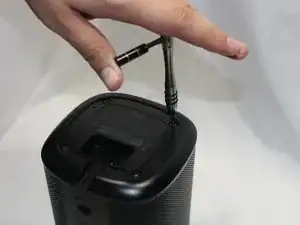

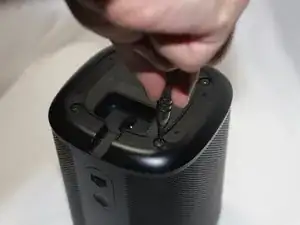

    • Remove the four 10mm Torx T10 screws from the bottom of the speaker.

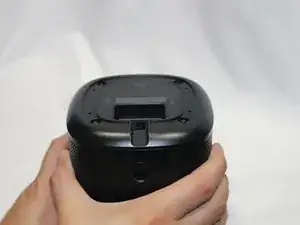

  3. MRXUMkYRPc26bSqp
    MRXUMkYRPc26bSqp

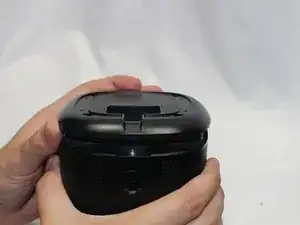

    s4HJvieC1YruHify

    • Remove the bottom cover by squeezing the protective cover slightly while pushing up with your fingers.

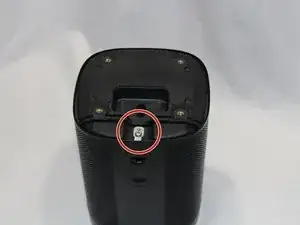

  4. FbUStLbNAKGaxOWg
    FbUStLbNAKGaxOWg
    Uaq4wNCVYhPPCrxg

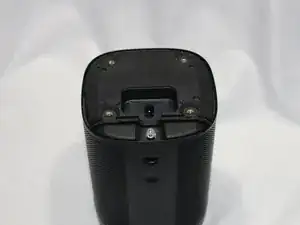

    HB36AKuFlDDSmAMt

    • The protective cover clip is very thin and deforms easily.

    • Remove the single 8mm Torx T10 screw and protective cover clip.

  5. 1DHmTOL1GUkrko1U
    1DHmTOL1GUkrko1U

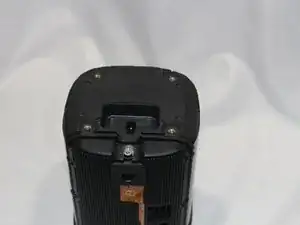

    mbw2scALRUrUHfCY

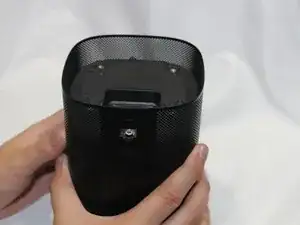

    • Slide the protective cover upwards to remove.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Marcus Glowa

Mitglied seit: 14/02/18

806 Reputation

Ein Kommentar

Well done! I would add a little bit about how much adhesive there is underneath the rubber feet as well as the screw cover.
