Sonos Play 3 Mid-Range Speakers Replacement

Geschrieben von: Christina Santini
  • Kommentare: 7
Sonos Play 3 Mid-Range Speakers Replacement

Schwierigkeitsgrad

Moderate

Schritte

9

Zeitaufwand

10 - 15 Minuten

Einleitung

The mid-range speakers are the two large speaker modules on the front panel. These speakers produce most of the sound for your system. You may need to replace one of these if your music is sounding unbalanced or quiet.

  1. SHZtpfGGCsrJdDGZ
    SHZtpfGGCsrJdDGZ
    ydrTeAC3AH3SvDDF

    • Insert a spudger along the edge of the screen and gently use it to pull the screen away from the casing. Slide the spudger along the length of the grill to detach all the clips holding it in place.

  2. cUJGjxPHjH4aIder

    • Gently pull the screen away from the body of the speaker, revealing the tweeter and two mid-range drivers behind it.

    • There may be a kind of black sticky adhesive holding the screen clips to the rest of the body; however, it was previously removed on our model.

  3. gmQsEKIeDGILBiax
    gmQsEKIeDGILBiax
    GZ6A2fEWDwVGBxtQ

    • Unscrew eight 1.5 inch Phillips #2 screws attaching the front speaker panel to the box.

    • Unscrew the single 1 inch Phillips #2 screw located on the left side of the panel. This may be hidden beneath the warranty void sticker that you'll want to remove.

    • Unscrew the single 3/4 inch Phillips #2 screw, which is the last thing holding the front panel to the casing.

  4. GOCnOFDcwe6cyTJg
    GOCnOFDcwe6cyTJg
    uqqXXYCJCbg3iWjp
    5X3xRm4ADFYpSHAj

    • Remove the front panel carefully.

    • Note that there are two layers to the panel that should stay in their original order.

  5. NthDU6wjJ6W2IxZM
    NthDU6wjJ6W2IxZM
    UHcoNIc1cIWsYh3u

    • Disconnect the front panel from the motherboard by gently reaching in and pushing the tab underneath the wire connector and pulling towards you.

  6. y3EJoGlcl2xFIFOm
    y3EJoGlcl2xFIFOm
    sMRuUvBxsZrGylrG

    • Gently remove the wireless card located at the bottom of the front speaker panel by pulling up and out with your index finger and thumb.

    You must first loosen the Phillips #1 screws holding the plastic brackets that keep the Wi-Fi card in place.

    Olivier Biot -

    On the Sonos Play 3 I opened, the Wi-Fi card lied flat below the plastic clips. Between the card and the clips, there were 2 rectangular foam pads glued to the Wi-Fi card.

    Olivier Biot -

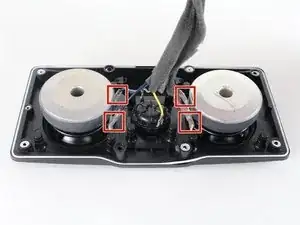

  7. 2NNbPZiDhEekVQbH
    2NNbPZiDhEekVQbH
    liESSyqK4p1leuLk
    McJotK1Dsg44PtoD

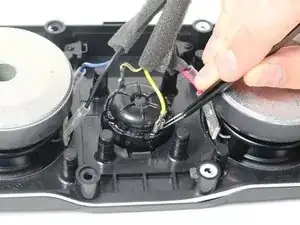

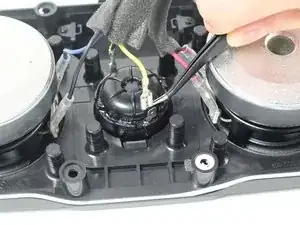

    • Use tweezers to disconnect the wire connectors from the mid-range speakers. The connectors may be very tight, but we promise they do come off.

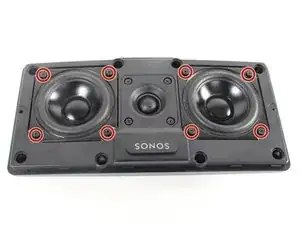

  8. t5JqoJMmUhPU3S2N

    • Using a Phillips #2 screwdriver, remove the screws securing the speakers to the front panel.

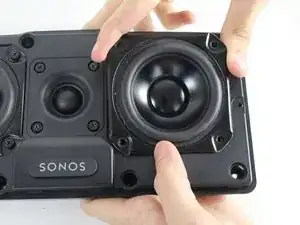

  9. gPRFQGgkbXW34BLL
    gPRFQGgkbXW34BLL
    BOXCmrEGgWot1XWQ

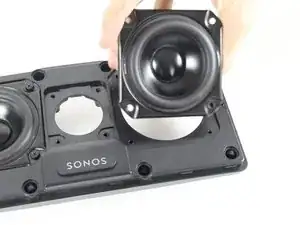

    • Carefully lift the speaker you need to replace out the front of the panel.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Christina Santini

Mitglied seit: 14/04/16

1323 Reputation

5 Kommentare

What’s the point of taking the speaker out, if I can’t buy a replacement?

Peter -

hi! where can i buy a replacement speaker?

Kareem -

Christina, where did you get the replacement speaker??? What is the point of the how to without the parts??

wedevets -

Dove posso trovare i ricambi sonos

Giustino -

Successful driver replacement !

I dropped my Play 3 about a month ago. Both of the mid range drivers suffered damage. The magnets pulled the cones off center. I was able to reset one of the cones and it tested ok. The other unit not so much. I bought 2 drivers from AliExpress, deciding to replace both anyway . They arrived in 3 weeks, fit perfectly in the enclosure and the wire connectors needed no mods either. The replacements took about 10-15 minutes to install and the Play 3 is now playing beautifully! Link for the drivers:

https://www.aliexpress.com/item/22518326...

Doug Field -
