Einleitung
The tweeter speaker is used to amplify high sounds. If your music sounds noticeably deep, there may be an issue with the tweeter and it will need to be replaced.
Werkzeuge
-
-
Insert a spudger along the edge of the screen and gently use it to pull the screen away from the casing. Slide the spudger along the length of the grill to detach all the clips holding it in place.
-
-
-
Gently pull the screen away from the body of the speaker, revealing the tweeter and two mid-range drivers behind it.
-
-
-
Unscrew eight 1.5 inch Phillips #2 screws attaching the front speaker panel to the box.
-
Unscrew the single 1 inch Phillips #2 screw located on the left side of the panel. This may be hidden beneath the warranty void sticker that you'll want to remove.
-
Unscrew the single 3/4 inch Phillips #2 screw, which is the last thing holding the front panel to the casing.
-
-
-
Disconnect the front panel from the motherboard by gently reaching in and pushing the tab underneath the wire connector and pulling towards you.
-
-
-
Gently remove the wireless card located at the bottom of the front speaker panel by pulling up and out with your index finger and thumb.
-
-
-

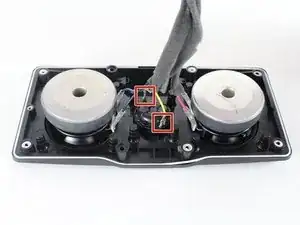

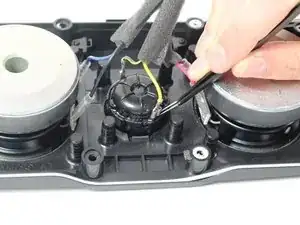

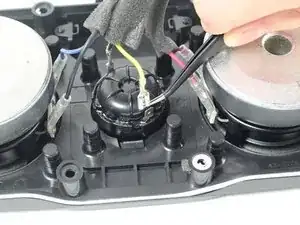

Use tweezers to disconnect the wire connectors from the tweeter speaker. The connectors may be very tight, but we promise they do come off.
-
-
-

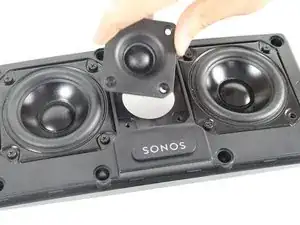

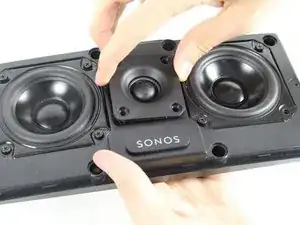

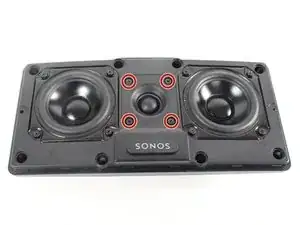

Using a Phillips #2 screwdriver, remove the screws securing the speaker to the front panel.
-
To reassemble your device, follow these instructions in reverse order.
