Sonos Playbase Ethernet Port Replacement

Geschrieben von: James Andrews
  • Kommentare: 2
Sonos Playbase Ethernet Port Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

5 Minuten

Einleitung

This guide shows how to replace the Ethernet Port from the Sonos Playbase, which connects the Playbase to the internet.

  1. VKXYAE6tEwo11DgF
    VKXYAE6tEwo11DgF
    fGKASXj4yk4Sxwoa
    nNwTIGAsZKfhY5Fy

    • Turn the Playbase upside down so that the "Sonos Playbase" imprint is face up.

    • Remove the bottom panel with an Opening Tool by inserting underneath and prying upwards.

    • Melt the adhesive with an iOpener for ease of opening

    • Use a Metal Spudger if the plastic spudgers do not work.

    • Take care to avoid damaging the plastic or the device if using a metal spudger.

    what good is this without a link to where to buy the part you are replacing?

    Rob Wright -

  2. foPotuMrdmuO3fWH
    foPotuMrdmuO3fWH
    LoXPZsfpkqAVcyoB

    • Remove the fourteen 11mm T-10 screws by turning counter-clockwise.

    • Remove the seven 44mm T-20 screws by turning counter-clockwise.

    • Remove the twenty-two 34mm T-20 screws by turning counter-clockwise.

    • Record where each screw belongs for easier reassembly.

  3. fqbLjYotpPXykwjb
    fqbLjYotpPXykwjb
    3W5mUoqtpAGPDZwK

    • Remove the metal plate with a Opening Tool by inserting underneath and prying upwards.

    • Use a metal spudger if plastic openers do not work.

    • Take care to avoid damaging the plastic or the device if using a metal spudger.

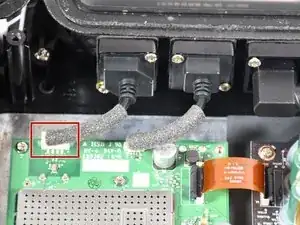

  4. uFnTeUpcLPdj1Gkd
    uFnTeUpcLPdj1Gkd
    n1VynACh5BJayPqh

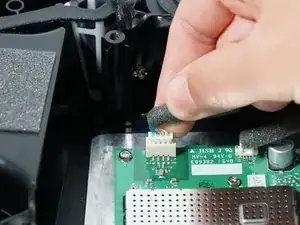

    • Unplug the Ethernet Port from the main circuit board by pinching the white clip and pulling upward.

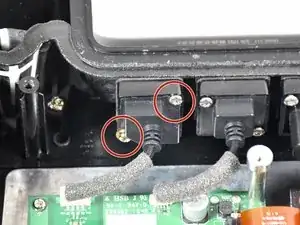

  5. lappFXOZ46PKgcAR
    lappFXOZ46PKgcAR
    2xnUyMJGgPRBkmDA

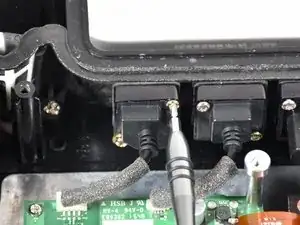

    • Remove the two 18 mm T-10 screws holding the Ethernet Port in place by turning them counterclockwise.

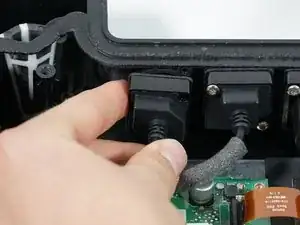

  6. wvKNVijOBtjau1wr
    wvKNVijOBtjau1wr
    TEej2HEFOcLZrIZt

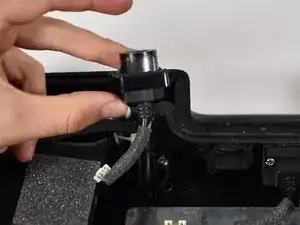

    • Remove the Ethernet Port from the housing by pinching from both sides and pulling it out.

Abschluss

To reassemble your device, follow these instructions in reverse order.
