Sonos Playbase Main Speaker Array Replacement

Geschrieben von: James Andrews
  • Kommentare: 1
Sonos Playbase Main Speaker Array Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

15 Minuten

Einleitung

Caution: Unplug the Sonos Playbase before starting the disassembly to avoid electrocuting yourself.

Replacement of a main speaker requires iFixit prying tools and screwdrivers. Optionally, a heat source helps to more easily remove adhesive while opening up your device.

  1. VKXYAE6tEwo11DgF
    VKXYAE6tEwo11DgF
    fGKASXj4yk4Sxwoa
    nNwTIGAsZKfhY5Fy

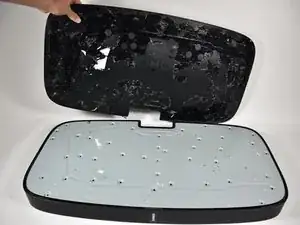

    • Turn the Playbase upside down so that the "Sonos Playbase" imprint is face up.

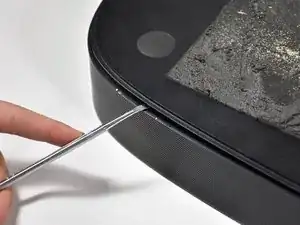

    • Remove the bottom panel with an Opening Tool by inserting underneath and prying upwards.

    • Melt the adhesive with an iOpener for ease of opening

    • Use a Metal Spudger if the plastic spudgers do not work.

    • Take care to avoid damaging the plastic or the device if using a metal spudger.

    what good is this without a link to where to buy the part you are replacing?

    Rob Wright -

  2. foPotuMrdmuO3fWH
    foPotuMrdmuO3fWH
    LoXPZsfpkqAVcyoB

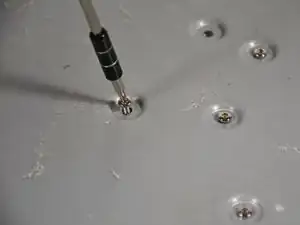

    • Remove the fourteen 11mm T-10 screws by turning counter-clockwise.

    • Remove the seven 44mm T-20 screws by turning counter-clockwise.

    • Remove the twenty-two 34mm T-20 screws by turning counter-clockwise.

    • Record where each screw belongs for easier reassembly.

  3. fqbLjYotpPXykwjb
    fqbLjYotpPXykwjb
    3W5mUoqtpAGPDZwK

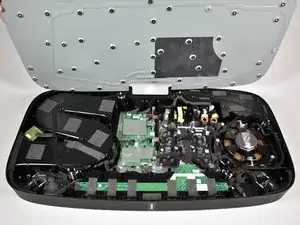

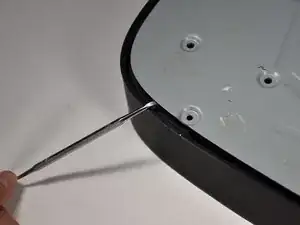

    • Remove the metal plate with a Opening Tool by inserting underneath and prying upwards.

    • Use a metal spudger if plastic openers do not work.

    • Take care to avoid damaging the plastic or the device if using a metal spudger.

  4. bWShwrkGcxexaYSS
    bWShwrkGcxexaYSS
    xFeQA44ELNeVYkKx

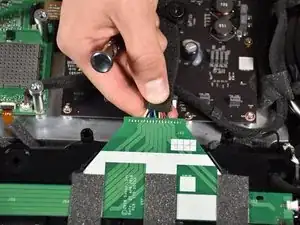

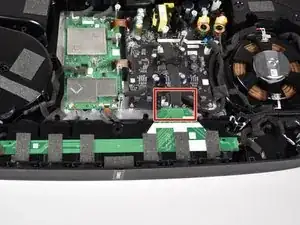

  5. e1jYhpiqpvLIDSsv
    e1jYhpiqpvLIDSsv
    CY5xPuFDbqQZOC5I

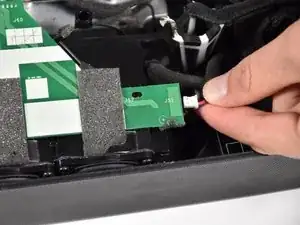

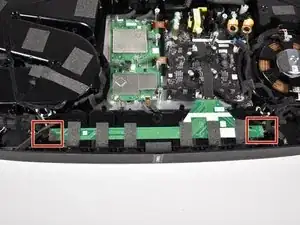

    • Remove the side speakers from the green printed circuit board (PCB) running along the top of the main speaker array by pinching and pulling out the connector.

    • See Recognizing & Disconnecting Cable Connectors for more information.

  6. VvTuXpIA46Sh6SHP
    VvTuXpIA46Sh6SHP
    ZBgUKhEKYknTBNkW
    ehUGlvONlqJoRxZ2

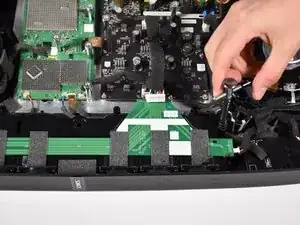

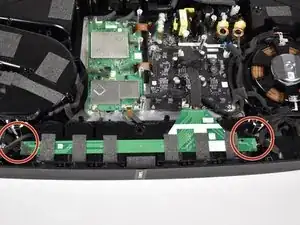

    • Remove the two 16mm T-20 screws located on both sides of the main speaker array by turning counter-clockwise.

  7. hGXt5Jx5kGi1IRYn

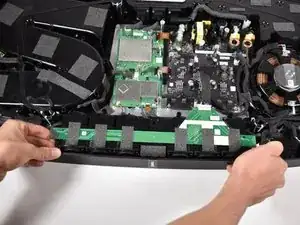

    • Remove the main speaker array by gripping it on both sides and pulling it out.

    • The array may require a significant amount of force to remove.

    • Use prying tools as necessary to remove the main speaker array if you are unsuccessful using your hands.

    • Do not to yank the array out too suddenly or too far as this may damage the device.

  8. Buaxark2HYJ4XD4Q

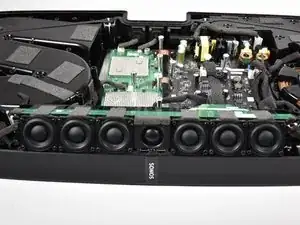

    • Prop the removed main speaker array up on top of the main circuit board.

Abschluss

To reassemble your device, follow these instructions in reverse order.
