Sonos Playbase Optical Audio Port Replacement

Geschrieben von: James Andrews

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

9 Minuten

Einleitung

This guide shows how to replace the Optical Audio Port from the Sonos Playbase, which supplies the audio input to the Playbase.

Turn the Playbase upside down so that the "Sonos Playbase" imprint is face up.
Remove the bottom panel with an Opening Tool by inserting underneath and prying upwards.
Melt the adhesive with an iOpener for ease of opening
Use a Metal Spudger if the plastic spudgers do not work.
Take care to avoid damaging the plastic or the device if using a metal spudger.

what good is this without a link to where to buy the part you are replacing?

Remove the metal plate with a Opening Tool by inserting underneath and prying upwards.
Use a metal spudger if plastic openers do not work.
Take care to avoid damaging the plastic or the device if using a metal spudger.

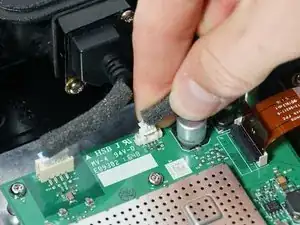

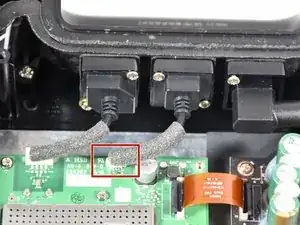

Unplug the optical audio port from the main circuit board by pinching the white clip and pulling upward.

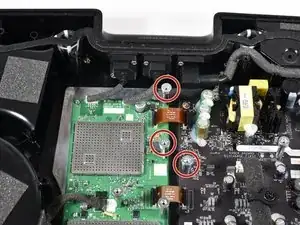

Remove the three 38mm T-55 screws preventing you from removing the Optical Audio Port screws by turning them counterclockwise.

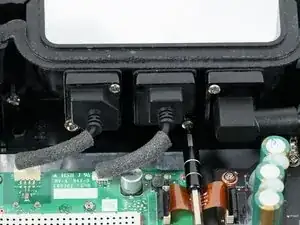

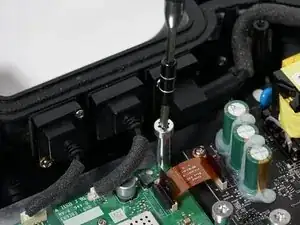

Remove the two 18mm T-10 screws holding the Ethernet Port in place by turning them counterclockwise.

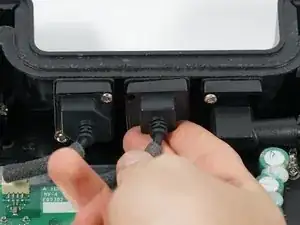

Remove the Optical Audio Port from the housing by pinching the sides and pulling outward.

Abschluss

To reassemble your device, follow these instructions in reverse order.
