Sonos Playbase Subwoofer Replacement

Geschrieben von: Clayton Lipping

Kommentare: 1

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

15 Minuten

Einleitung

If the bass in your Sonos Playbase is weak or distorted, the subwoofer may be failing or non-functional. This guide shows you how to remove and replace the subwoofer.

Werkzeuge

Schritt 1

Turn the Playbase upside down so that the "Sonos Playbase" imprint is face up.
Remove the bottom panel with an Opening Tool by inserting underneath and prying upwards.
Melt the adhesive with an iOpener for ease of opening
Use a Metal Spudger if the plastic spudgers do not work.
Take care to avoid damaging the plastic or the device if using a metal spudger.

what good is this without a link to where to buy the part you are replacing?

Rob Wright - 10/05/20

Schritt 2

Remove the fourteen 11mm T-10 screws by turning counter-clockwise.
Remove the seven 44mm T-20 screws by turning counter-clockwise.
Remove the twenty-two 34mm T-20 screws by turning counter-clockwise.
Record where each screw belongs for easier reassembly.

Schritt 3

Remove the metal plate with a Opening Tool by inserting underneath and prying upwards.
Use a metal spudger if plastic openers do not work.
Take care to avoid damaging the plastic or the device if using a metal spudger.

Schritt 4

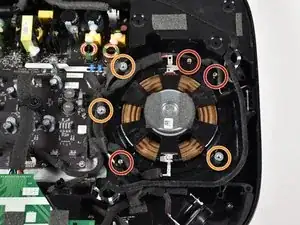

Remove the three 18mm T-20 length screws by turning counter-clockwise and pulling up.
Remove the three 38mm T-55 length screws by turning counter-clockwise and pulling up.
