Sonos Connect Fuse Replacement

Geschrieben von: YvesG
  • Kommentare: 1
Sonos Connect Fuse Replacement

Schwierigkeitsgrad

Moderate

Schritte

6

Zeitaufwand

30 Minuten - 2 Stunden

Einleitung

  1. vaxZM2rcCSYBHQwi

    • Remove the rubber pads and unscrew

  2. g6vWOXWiIKYKl6ES

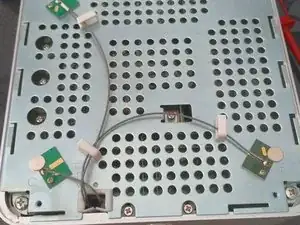

    • Take care not to damage the wires of the Wi-Fi antennas which are very bothersome.

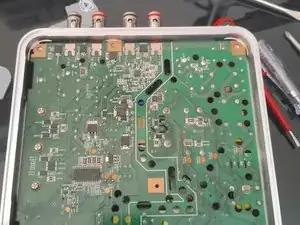

  3. LWRBCOZXVU2DxDOG
    LWRBCOZXVU2DxDOG
    EuJkB3QYEQpLIQos

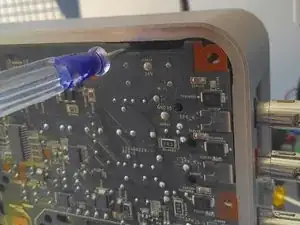

    • By using a screwdriver inserted through each of the 8 peripheral slots, you can access the clips of the top cover.

  4. MbhBMOpy2WLWvFtk

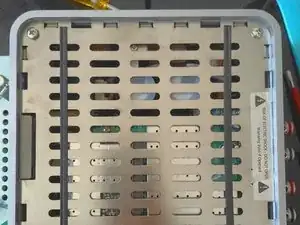

    • Continue unscrewing (there is a screw under the seal).

  5. fp2A6Q4Exdpe1lK1

    • It's a soldered fuse. You will need to desolder it from the back in order to replace it.

  6. a64Xr6VdSlBmLsDV

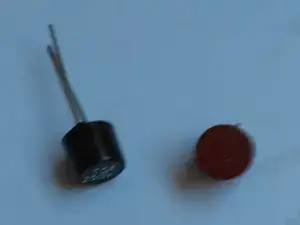

    • About 1$

    • 250V 5A T fuse (time delay).

Abschluss

To reassemble your device, follow these instructions in reverse order.
