Sony α6000 LCD Screen Replacement

Geschrieben von: Rohn Albertson
  • Kommentare: 4
Sony α6000 LCD Screen Replacement

Schwierigkeitsgrad

Moderate

Schritte

8

Zeitaufwand

20 - 40 Minuten

Einleitung

LCD stands for liquid crystal display, which is a used for displays in different devices. LCD is thinner than the older technology that provides better quality of picture. This guide will successfully show you how to replace the LCD screen of your Sony a6000 camera.

  1. MnHpGenuLZHflFxB

    • Remove the two 1.75mm Phillips #00 screws located on the bottom border of the LCD screen.

  2. aYbPKrFcUCqHlOWM

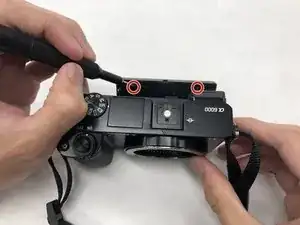

    • Remove the two 1.75mm Phillips #00 screws located on the back side of the LCD screen.

    This step is impossible, the LCD screen is stuck at an angle where it's impossible to get the Phillips onto it without stripping the screw. Horribly inaccurate picture of how 'easy' it is to put the screwdriver there.

    Rawr Peng -

    Same as what I am thinking.

    cloud.liu989 -

    I'm sorry you had problems with this guide. Just curious if you or cloud.liu989 found another way to access the LCD screen? Did you have to complete a prerequisite guide first or do you have any suggestions or tips? If you have any, we would love the help and will make a note in the guide. Thanks!

    Sarah Westberg -

  3. S2GgXCeeDlOVfZga

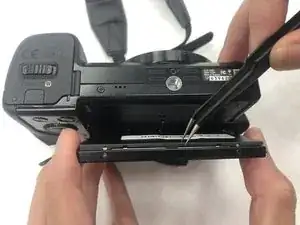

    • Carefully separate the bottom border of the frame from the back surface of the LCD screen.

  4. gdPTlTbL1RrKVwlm

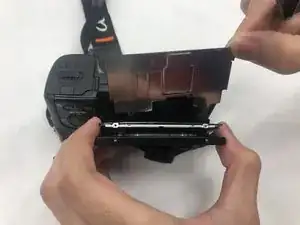

    • Remove the silver shield from the back side of the LCD screen.

  5. dCbgwShq4e6ZTC6R

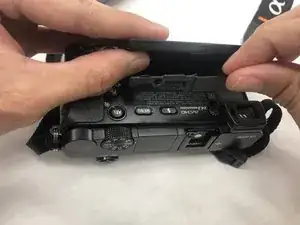

    • Remove the smaller bracket covering the bottom portion of the control board.

  6. UTMiVgYHmlBwAaPy

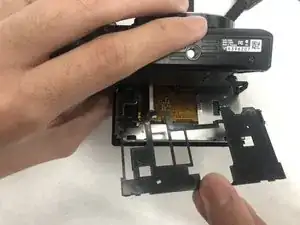

    • Carefully remove the spacer from behind the LCD screen.

  7. kuOpjXpFMJAGcDFV

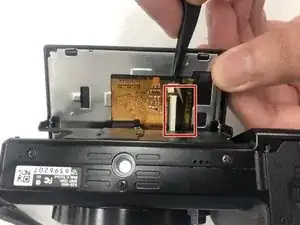

    • Detach the ribbon from the socket with a pair of tweezers.

  8. NgBX3VAQXfcCmhmD

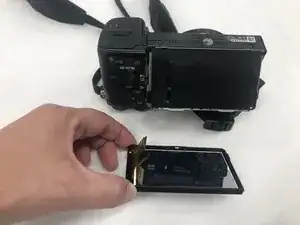

    • Pull the LCD screen away from the camera and set aside.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Rohn Albertson

Mitglied seit: 14/07/19

607 Reputation

Ein Kommentar

Step 2 makes this repair impossible, the LCD screen is stuck at an angle where it's impossible to get a normal Phillips onto it without stripping the screw. Horribly inaccurate picture of how 'easy' it is to put the screwdriver there. Don't follow this guide.

Rawr Peng -
