Sony Action Cam Mini HDR-AZ1 Battery Door Replacement

Geschrieben von: Mathieu LaFond
  • Kommentare: 0
Sony Action Cam Mini HDR-AZ1 Battery Door Replacement

Schwierigkeitsgrad

Easy

Schritte

5

Zeitaufwand

3 Minuten

Einleitung

Is your battery door damaged or is the clasp broken?

  1. Vjd3Sh6J1pd35iJs
    Vjd3Sh6J1pd35iJs
    ZUcP3YIe4RKMB1Wk
    XhiAKHXleRuHZgmw

    • To access the battery, first make sure the camera is out of the case.

    • Push down on the door lock, located on the rear of the action cam.

    • The door is unlocked if the little yellow square is showing.

    • Pull on the panel door, located on the side opposite the LCD screen, and it should now pop open.

  2. tEydUPtCUbKDR2JO
    tEydUPtCUbKDR2JO
    wHB5TRSHjbpl6PSy
    FmHhu5nIDDOvhlom

    • Open the side panel outward to reveal the battery.

    • Be sure not to break the small piece of plastic securing the door to the camera.

    • Use the pull tab to pop the battery out of place.

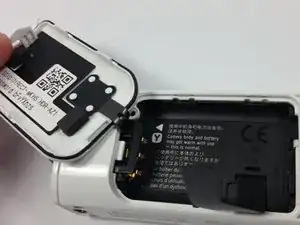

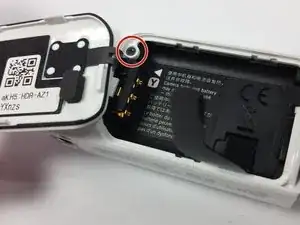

  3. SMXYX4vArxyiu1BF
    SMXYX4vArxyiu1BF
    442ME2eevYNfFR1m

    • Remove the circled 4 millimeter black screw adjacent to where the door is attached.

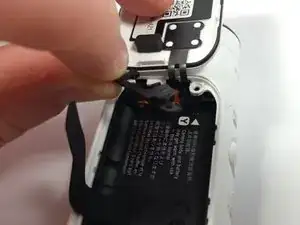

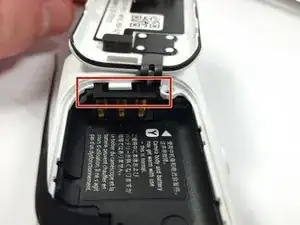

  4. dFUagdUcOkJiKP2G
    dFUagdUcOkJiKP2G
    wJCZiUIqvuIvdnsf

    • Grab the small black bracket holding the ribbon on which the door is attached and pull it out.

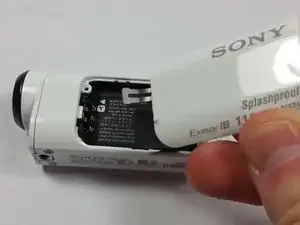

  5. TNUuI5U6SvALU2Wo

    • Pull the door straight back so the attaching ribbon is pulled taught and the door will come right off.

Abschluss

To reassemble your device, follow these instructions in reverse order.
