Sony Alpha 5100 LCD Replacement

Geschrieben von: Kevin Raggiani
  • Kommentare: 1
Sony Alpha 5100 LCD Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

10 - 20 Minuten

Einleitung

This guide will be showing you how to get into the back of the LCD screen on the Sony Alpha 5100 (ILCE-5100/5100L). This guide will help if you are having trouble with the camera screen not working. Since we are exposing the electronics underneath the screen, do not expose the inside to water.

  1. qGHVU2DfqUfK22Cf

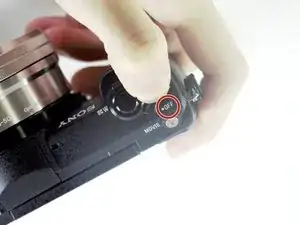

    • Slide the power switch on the top of the camera to "off."

  2. ZSR46cCfSfZIe3oG

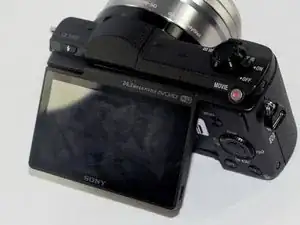

    • Flip the LCD screen so that you have access to the back of the screen. The front of the screen should be facing the direction that the lens is facing.

  3. yxfkKk4dDdoNdovH
    yxfkKk4dDdoNdovH
    tnRKFYCLvFYoFJUU

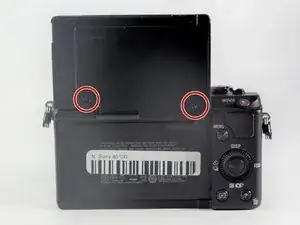

    • Remove the two 2mm Phillips #00 screws on the back of the screen.

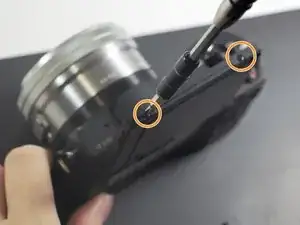

    • Remove the two 2mm Phillips #00 screws on the top of the LCD screen.

  4. cJJYq6MTfjXm64Be

    • Carefully pry open the back plate off the screen with an iFixit opening tool.

    • If separating the plates is giving you trouble, aim for the notch at the bottom of the plate.

  5. PcolwE1OHqZyUSbR
    PcolwE1OHqZyUSbR
    ar6uD5gMMbjZaPY5

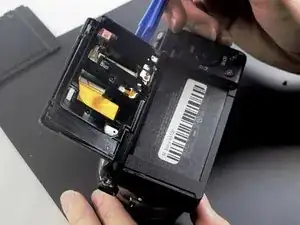

    • Carefully open the back plate of the screen.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Kevin Raggiani

Mitglied seit: 30/10/19

444 Reputation

Ein Kommentar

Hello, thank you for this but it’s only half the steps, how to remove the LCD and touch screen after step 5? Something else is holding it in place. Can lift the outer edge a little only. Possibly it is glue or tape? My touchscreen is always active and focus rectangle moving around the lower part of screen. Can touch screen and it will go there but soon moves back to lower area.

Thank you.

John Meldrum -
