Sony Alpha A3000 Built-in flash Replacement

Geschrieben von: Leonard Holloman

Kommentare: 3

Sony Alpha A3000 Built-in flash Replacement

Schwierigkeitsgrad

Moderate

Schritte

Zeitaufwand

15 Minuten

Einleitung

This guide shows how to remove the build-in flash of the camera from its compartment. You will need a soldering tool to detach the cables connecting the flash to the camera.

Werkzeuge

Schritt 1

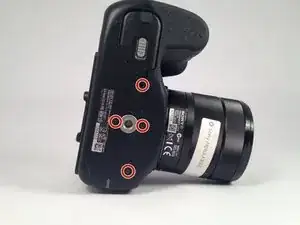

Remove the seven highlighted screws shown here.
Screws are teeny tiny, don't lose them!

Schritt 2

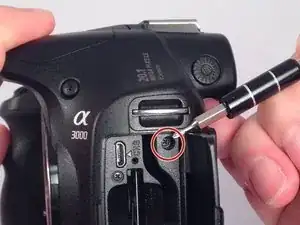

Remove this final screw from the memory card compartment.

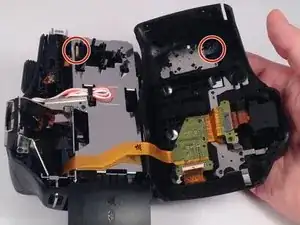

Remove the chassis by pulling the back cover away from the camera.
Be careful not to damage any of the delicate ribbon cables when removing the chassis.

Schritt 3

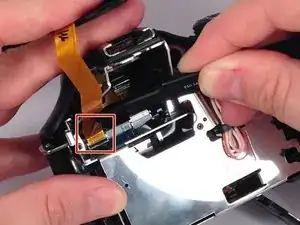

Gently but forcefully lift up on the parallel cable connecting the two halves of the camera.

Schritt 4

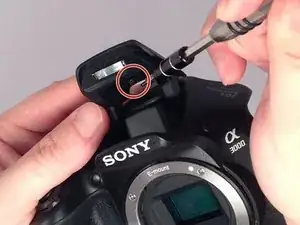

Remove the single screw from the bottom of the flash device.

Schritt 5

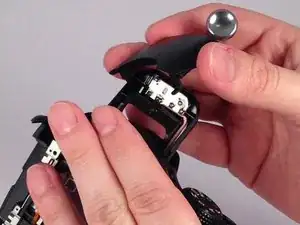

Remove the flash cover by gently pulling it in an outward direction.

Schritt 6

Use a soldering tool to remove the three wires connecting the flash to the camera.

Abschluss

To reassemble your device, follow these instructions in reverse order.
