Sony Alpha ILCE-6000 E-mount Replacement

Geschrieben von: Yirga Yilma
  • Kommentare: 0
Sony Alpha ILCE-6000 E-mount Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

3 Minuten

Einleitung

If there is a problem mounting the lens onto your Sony Alpha ILCE-6000 , this guide will help you replace the E-mount ring.

  1. BqqW1m4PZivhVmVv

    • Turn of camera by turning the switch to OFF.

  2. FUpksrFsYkJVlhXE

    • Use the finger, press and hold the release black circle button ( on the bottom ) next to the lens on the front of the camera.

  3. k2LVuZEHyv1K64NV
    k2LVuZEHyv1K64NV
    DCIfqmZIMaQFMl6x

    • Using the left hand or the right hand to hold the camera body, other hand twist the lens counterclockwise and pull it off.

    • Align the white dot of the lens to the white dot on the camera mount to completely replace.

  4. cRC61GrTU2NMGrM6
    cRC61GrTU2NMGrM6
    OeDH3EtpBVKGvKZO

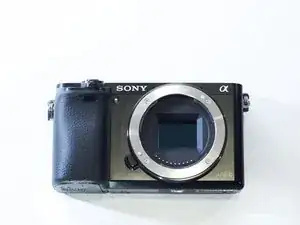

    • Locate the E-mount on the front of the camera

  5. lkbJFNfCUbhKNBDu
    lkbJFNfCUbhKNBDu
    TPDXnBqwytJkBYd5
    Kmi2q1tFSScGdQWJ

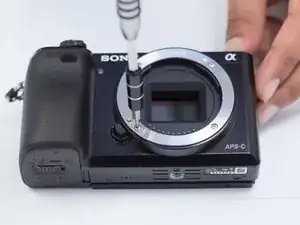

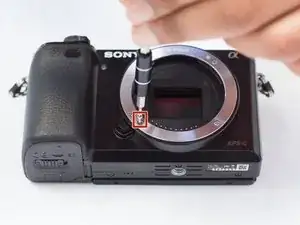

    • Take a Philips head 00 screw to remove the four of the 5.1mm screws located on the E-mount.

  6. ERTFtruKA3KVNCHy
    ERTFtruKA3KVNCHy
    CXTIsU1DUYWkZP3k
    nZCBO3kVXx4n1CKm

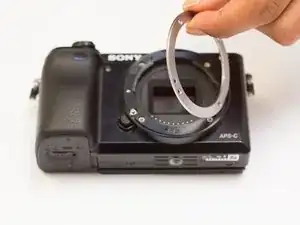

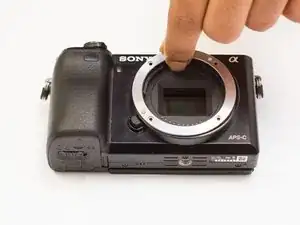

    • After removing the screws, pull off the E-mount metal ring gently and wiggle it until its free.

    • Remove the plastic ring located under the metal ring.

    • Do not remove the metal piece that is located behind the plastic ring.

  7. KxE2GirDuAM1dmcU

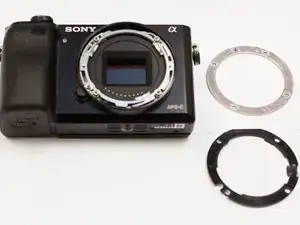

    • Replace the plastic E-mount ring with a new one.

Abschluss

To reassemble your device, follow these instructions in reverse order.
