Sony Alpha NEX Cameras Shutter Error Repair Guide

In this guide we will disassemble Sony Alpha NEX-3N camera completely to access the shutter assembly to repair the very common "Camera Error. Turn power off then on." fault (see the example video of the error on this page).

The disassembly guide can be helpful for other Sony Alpha cameras. The shutter unit is shared among most of the Sony Alpha series, so the repair may also be applicable to other Sony Alpha cameras.

Before starting the repair procedure please carefully read all the steps in this manual. The camera has a high voltage flash circuitry inside, which is indicated in the steps several times. Be careful and do not touch the circuitry, it may injure you or be lethal. For this repair you only need a Philips #00 screwdriver and a pair of tweezers.

  1. Q5jscaYrKYSJD5RF
    Q5jscaYrKYSJD5RF
    KXZMJEnW1nVcIRwq
    3YND1CB15GThuoe1

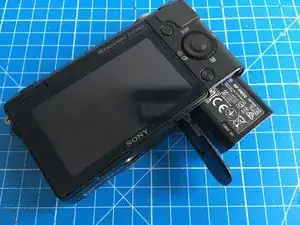

    • Start with removing the SD card, battery, and the lens from the camera.

  2. hDJwqrosWvEpBsn5
    hDJwqrosWvEpBsn5
    VhVaRhIRhsYjTpmF
    DRYurX2dJtFloaHH

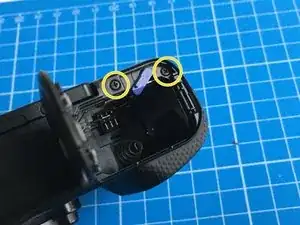

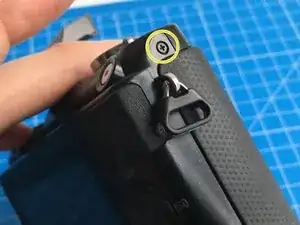

    • Remove the marked metric screws using a Philips #00 screwdriver. They are all identical.

  3. opJaIJpkeN4ERsuV
    opJaIJpkeN4ERsuV
    DoCKfrWsHln2JIwA
    1jlSyNYQl3HAURrJ

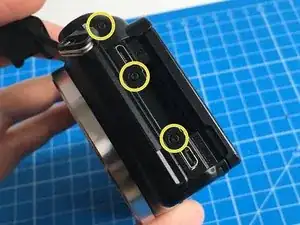

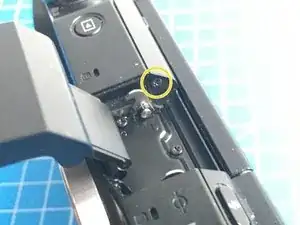

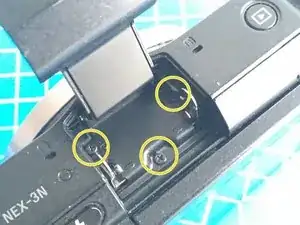

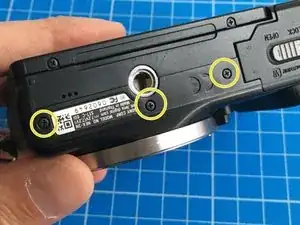

    • Remove the marked metric screws under the SD card door and the flash unit, using a Philips #00 screwdriver. They are all identical.

  4. VB2cqNchMxNKNk3Y
    VB2cqNchMxNKNk3Y
    iRXuo2VIOLwMaw26
    pwXUDuljxySoJoSU

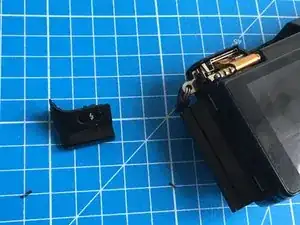

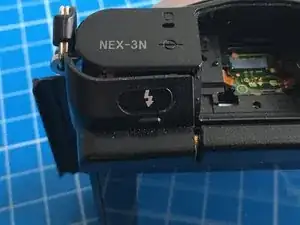

    • Gently pry the flash button assembly away from the camera, remove the cover as seen in the photos.

  5. R1yrHiXpahir1RLK
    R1yrHiXpahir1RLK
    LPWS5q5vkLV5gPlZ

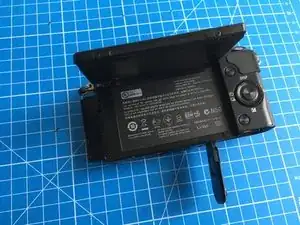

    • Gently remove the rear plastic cover by prying it off starting from the bottom edges.

  6. FhpHdHUBNU5N5e6T
    FhpHdHUBNU5N5e6T
    nLdrqjXLUnUrF5eh

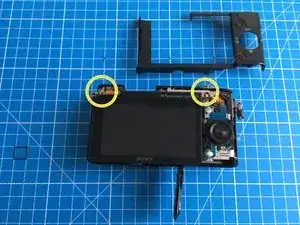

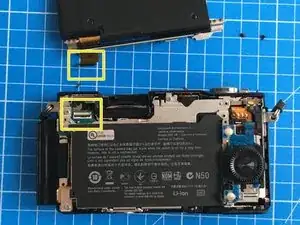

    • Free the LCD unit by removing two small black metric screws using Philips #00 screwdriver.

    • Gently unlock the ZIF connector as marked to remove the flat flex cable.

  7. ZLwHLIWSeOnvK4nV
    ZLwHLIWSeOnvK4nV
    LqIeNcZ53i6eDLPe
    MPnq3LPaLpO1DGcH

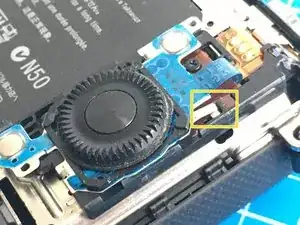

    • Lift the locking tab up using a pair of tweezers and slide the rotating wheel button assembly upwards to free it.

    • Lift the button assembly up.

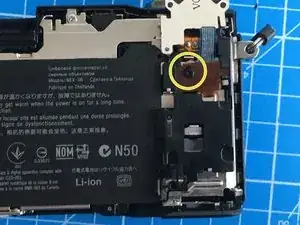

    • Remove the small metric screw using Philips #00 screwdriver.

  8. CEZiX4seDswPtfP2
    CEZiX4seDswPtfP2
    aJD4WklFhTKREilV

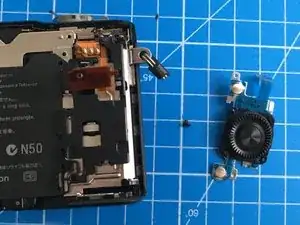

    • Pull the blue friction fit flat flex cable to remove the button assembly.

  9. ya4rA4TyjUyNwdQQ
    ya4rA4TyjUyNwdQQ
    P13cwbFtrvRER2kR
    luUDZW6NfXySQYGs

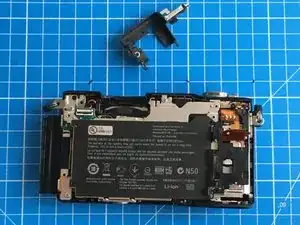

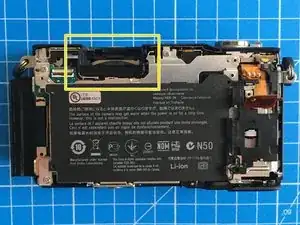

    • Remove the black plastic flash plunger assembly.

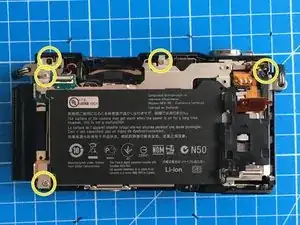

    • Remove the screws marked on the body using Philips #00 screwdriver. There is one black metric screw and four silver self-tapping screws. See the next step for the type of screwdriver you need to reach the upper right screw.

  10. lnTErfa16JfgKdsK
    lnTErfa16JfgKdsK
    gsJOdGNOtrVGOvTx

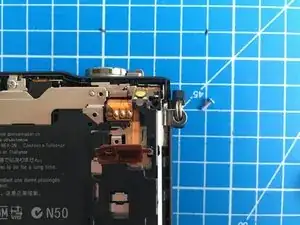

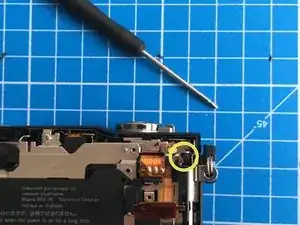

    • From the previous step, the upper right screw is buried deep in the assembly. Use a thin and long screwdriver.

  11. OecvfYTQl4XeLTFn
    OecvfYTQl4XeLTFn
    uqaPHG5dTLY16nZ2
    UGWyGErbDCNLcbFu

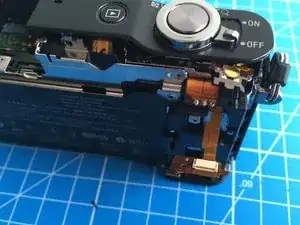

    • Gently pry off the movie button away from the plastic seat, and prepare to care for the flat flex cable leading to the button connector.

    • Pull the metal cover away slowly, removing it from the camera body.

  12. RWJLAgvPOBlwKq4y
    RWJLAgvPOBlwKq4y
    pAuXsVQXQMJQAylZ
    JOGE4TuMOsKRL4wY

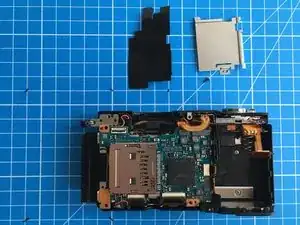

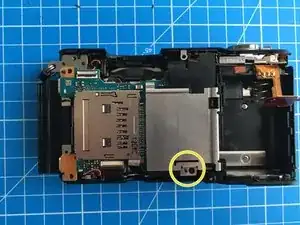

    • Remove the marked small metric screw using Philips #00 screwdriver.

    • Remove the metal and plastic shields.

  13. YVeiG14uTxPmoBWw
    YVeiG14uTxPmoBWw
    FKtPX4QumUVSNbYT
    NjSLUudqQJ5xA5wi

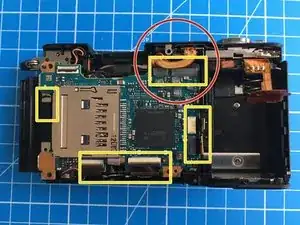

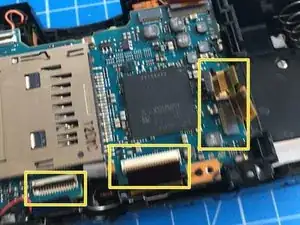

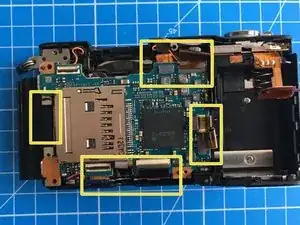

    • The mainboard has 8 flat flex cables connected to it. 2 of them are hidden behind.

    • One of the flex cables may have high voltage from the flash charge circuit, so be careful when touching around. The flex cable is at the back of the unit, in the area marked with red circle in the first photo.

    • The bottom two flat flex cables have ZIF connectors with locking tabs. The rest are pressure fit, just pull them away gently using tweezers.

  14. AiNBRR4PHSTHNJ4j
    AiNBRR4PHSTHNJ4j
    FdZe1yeeQkaEgrkj

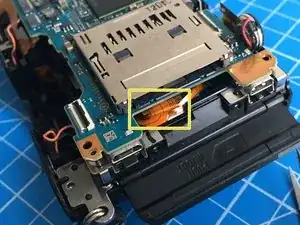

    • Remove all the flat flex cables carefully by pulling them.

  15. V5Z25HFRKXWRBUlN
    V5Z25HFRKXWRBUlN
    tuWU21RUMeUXGWQZ
    vrl3FO3UsDMOmhDI

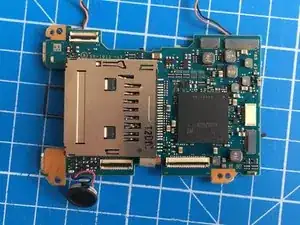

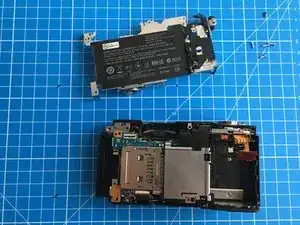

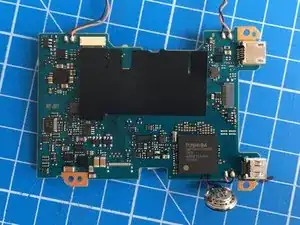

    • When removing the mainboard, be careful not to rip the microphone and speaker cables off.

    • Be careful with the high voltage flash circuitry as shown with the red circle in the first photo.

  16. Ae5kqNTvcKbNQWR2
    Ae5kqNTvcKbNQWR2
    gDRtHEm3o6Cb44DF
    3UcjLkUxhVpDtq2s

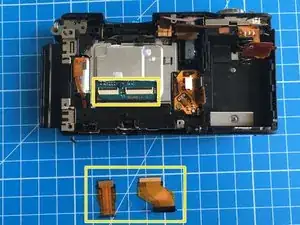

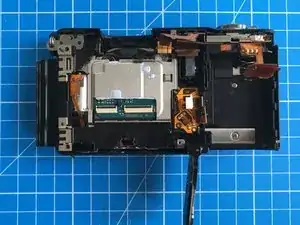

    • Remove the flat flex cables from the sensor assembly by unlocking the lock tabs on ZIF connectors.

    • Remove the plastic cage battery holder by wiggling it out from its place.

    • Be careful about the high voltage flash charge circuitry, as shown in the last photo.

  17. hLETWkTtPJOVyibx
    hLETWkTtPJOVyibx
    VZ2t1dgZ5juuF22Z
    1uFMEQHaBIs15GXt
    • Release the strap eyelet assembly by removing the silver self-tapping screw as marked in the first photo.

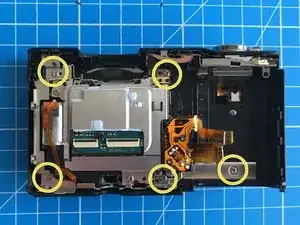

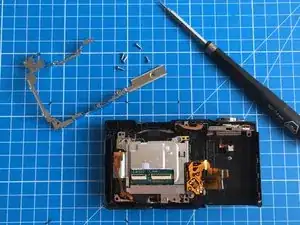

    • Remove 5 silver self-tapping screws as marked.

    • Remove the metal frame.

  18. el3MTsVSEoqapTGs
    el3MTsVSEoqapTGs
    aQQiy21KgMkwLrjG
    fZucxSJnbQ1cWIPk

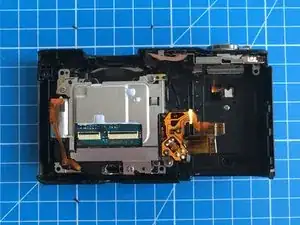

    • Remove the lens mount, shutter and sensor assembly from the camera body.

    • Remove 3 marked silver self-tapping screws to release the sensor assembly. Pay attention to the sensor adjustment shims. Do not misplace them.

    • Do not touch the sensor surface. Keep it at a safe and clean location.

  19. p1GHHS1mbFLbyvfA
    p1GHHS1mbFLbyvfA
    I5KssO4yqajBYcnc
    jRcyDIuERGu3vanh
    • Pay attention to the shim locations. Your camera may have different coloured and different number of shims.

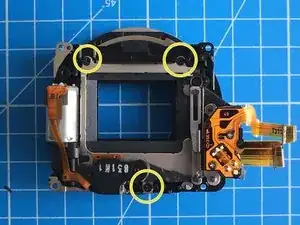

    • Remove 3 marked black self tapping screws to release the shutter assembly.

  20. OKLRANmv2JwtqLmd
    OKLRANmv2JwtqLmd
    DaNTPU5KaHJtIsIr
    axFyTRA6Gg5XR3er

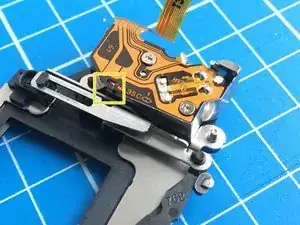

    • Gently remove the thin metal shield around the shutter unit. Pay attention to the tiny tab engaging with the circuit board, as marked in the first photo.

  21. GjudR6e4Y4c5gX1N
    GjudR6e4Y4c5gX1N
    5D1hpDnYUt25CBAY
    Tbh5RxJJie2dYNbj

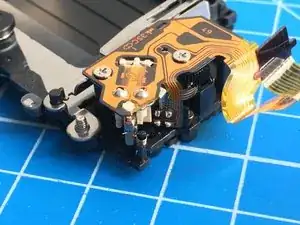

    • This step is the actual repair procedure for the shutter error.

    • The error is caused by a weakened shutter return spring. Due to extensive use it doesn't have the power to close the shutter.

    • Normally the motor opens the shutter curtain and engages the mechanism with a small neodymium magnet.

    • When the electromagnet is activated, the neodymium magnet is disabled and the shutter curtain has to travel towards closing direction with the help of the return spring.

    • However, when the return spring is not strong anymore, it cannot move the curtain.

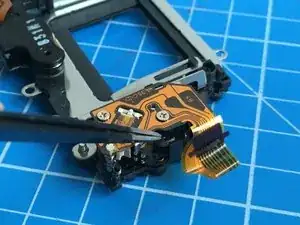

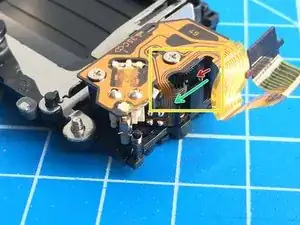

    • For repair, using a pair of tweezers, turn the spring adjustment wheel (the black round wheel with teeth, bottom one shown with red arrow) for 2-3 clicks towards the direction of green arrow. Compare the first and the last photo for the amount of rotation, it is only a tiny bit!

    • This should do it.

  22. owKZsYYHSL33Ngo1
    owKZsYYHSL33Ngo1
    3ACOTYRJDaBUgIuA

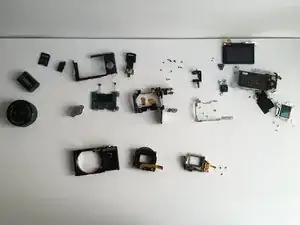

    • Re-assemble everything back in the same order of disassembly. Be careful when connecting the flat flex cables. It is very easy to damage them.

    • Test the camera. It should work now, but in case the error persists, try moving the spring adjustment wheel for one or two clicks more.

    • If it still doesn't work, you may need a new shutter assembly. There are plenty on sale, you can find it if you look for it.

    • Good luck!
