Einleitung
The lens release button is a component of the camera body, and is used to release the lens from the camera body. This button can become stuck, stopping one from removing or switching lenses.
Werkzeuge
-
-

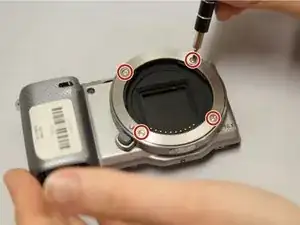

Unscrew the 4 silver 1.2 mm Phillips #000 screws along the front outer lens mount.
-
Detach the outer lens mount ring.
-
-
-

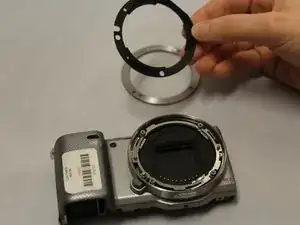

Using your fingers, pull out the first black spacer ring.
-

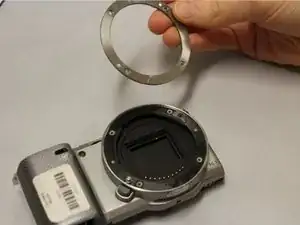

Repeat the previous step for the second silver spacer ring.
-
-
-

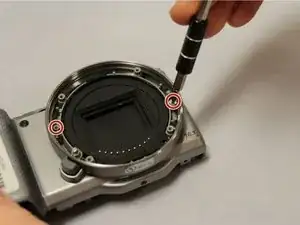

Unscrew the 2 silver 1.2 mm Phillips #000 screws on opposing sides in the lens ring area.
-

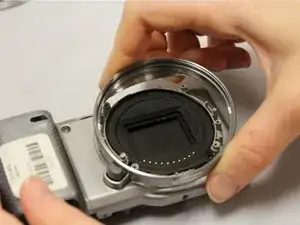

Using your fingers, easily pull off lens housing. This will complete the removal of the E-mount.
-
-
-

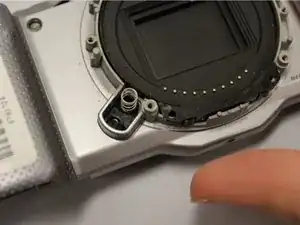

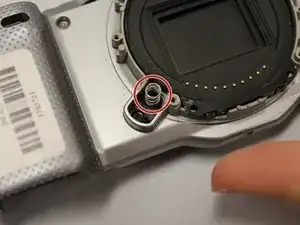

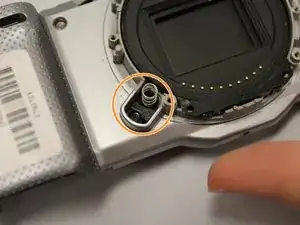

After removing the button, the spring underneath it is uncovered and can be replaced.
-
This completes the removal of the lens release button.
-
To reassemble your device, follow these instructions in reverse order.
