Sony Alpha NEX-6 LCD Screen Replacement

Geschrieben von: Clayton Dale
  • Kommentare: 2
Sony Alpha NEX-6 LCD Screen Replacement

Schwierigkeitsgrad

Difficult

Schritte

11

Zeitaufwand

15 - 30 Minuten

Einleitung

This guide will begin by taking off back cover of screen assembly. The guide will then explain how to uncover and disconnect the LCD Ribbon cable. The screen will then be removed from the screen mount assembly.

  1. c51dLFfosLgKDxDH

    • Prior to operating on this device, be sure the camera is turned OFF. With power, the camera can be a dangerous device to work with.

    • Turn the camera off by switching the power knob "OFF" text to the white selector dot.

  2. pdS6tujYPoRJKDxH

    • Flip the camera upside-down and carefully place it on a flat surface.

    • With the lens facing outward, locate the battery compartment - indicated by a grooved latch.

    • Push the latch to the right to unlock the battery compartment. The door should flip upward.

  3. hK1xeE3n3NHVOG2M

    • With the compartment open, locate a blue tab shown with spudger

    • Press the tab to the side (to the left, or toward the camera wall). This will eject the camera battery.

  4. yIVLNlqKVmGfwoqA

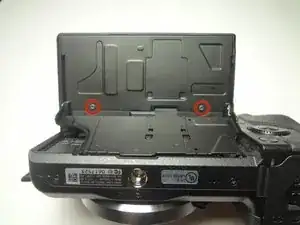

    • Remove the two 1.0 mm Phillips #00 screws from back of the LCD screen.

  5. OGCMoJbhKnNSjj2K

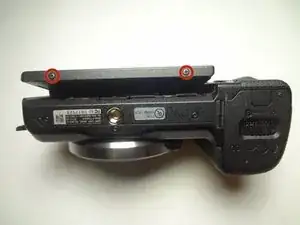

    • Remove the two 1.5 mm Phillips #00 screws from the bottom of the screen mount assembly.

  6. AxmQc2URm56qR5pP
    AxmQc2URm56qR5pP
    MUZRwedlRTOElfHC

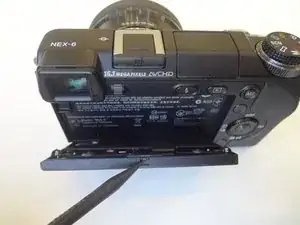

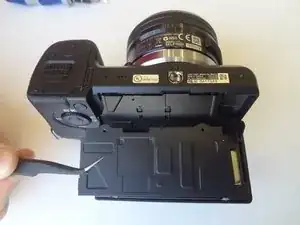

    • Using a plastic opening tool pry off the back cover from the screen assembly.

    • Remove back cover by lifting it away from the screen using tweezers.

  7. ZhWF5cICa5OmNDZY
    ZhWF5cICa5OmNDZY
    hslu2djfyaHhMxVP
    AGM1qKJNXIURZg2L

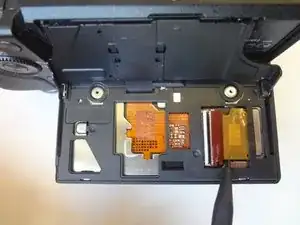

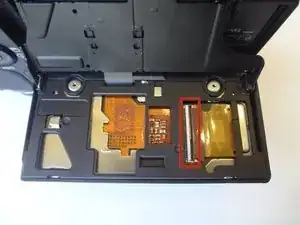

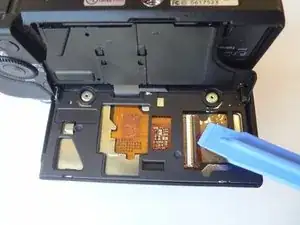

    • Release the ribbon cable by lifting the black locking latch with the plastic opening tool.

    • Pry out the ribbon cable by carefully sliding it out of the connection slot using a spudger.

  8. MTaeKd3KHXeNVdAO

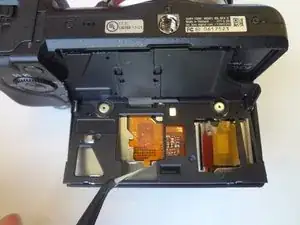

    • Lift and slide out the upper black plastic separator using tweezers.

  9. PBlh6MgL6iCJykqF
    PBlh6MgL6iCJykqF
    cjIMFvNwoCUp2yLQ
    kqBVWalsQMefcOnB

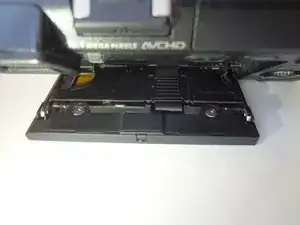

    • Lift and remove the lower black plastic separator using tweezers.

    • Using the pointy side of a spudger push in the screen lock button release it.

    • The screen lock button can now be removed.

  10. MP2lUVDVbuj5TjXD
    MP2lUVDVbuj5TjXD
    VYvBi4R4gfhPYdnH
    FqHJY3dbOgvUeNbO

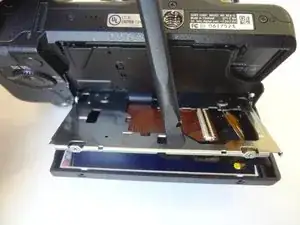

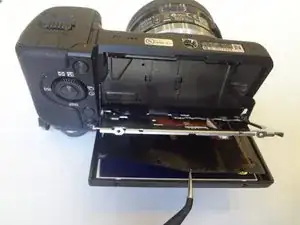

    • Using the flat end of the spudger, push on the black nylon sheet glued to the metallic frame to peel it of.

    • Apply force from different spots to avoid tearing the sheet.

    • Remove the black nylon sheet using tweezers.

  11. rIZsJM5LQsS3uu2F

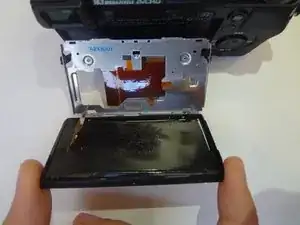

    • Gently wiggle the screen loose and remove it from the mount.

Abschluss

To reassemble your device, follow these instructions in reverse order.
