Einleitung
The back panel covers internal components. This guide will help remove it in order to access those components.
Werkzeuge
-
-

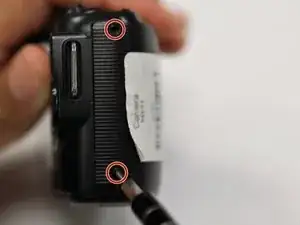

Use a Phillips head 000 screwdriver to remove the 4.0mm screw at the side opposite of the USB port.
-
-
-

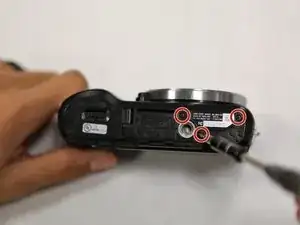

Use a Phillips head 000 screwdriver to remove the three 4.0mm screws on the bottom of the camera.
-
-
-

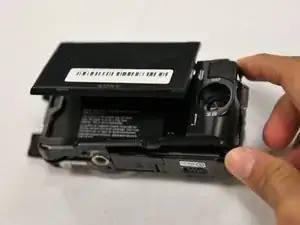

Tilt up the LCD screen.
-

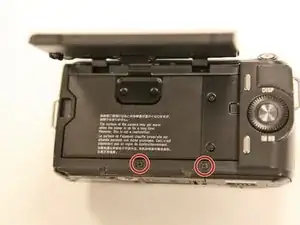

Use a Phillips head 000 screwdriver to remove the two coarse 4.0mm screws near the bottom of the camera.
-
Abschluss
To reassemble your device, follow these instructions in reverse order.
