Sony Alpha NEX-C3 LCD Screen Replacement

Geschrieben von: Jonathan Chen
  • Kommentare: 1
Sony Alpha NEX-C3 LCD Screen Replacement

Schwierigkeitsgrad

Difficult

Schritte

8

Zeitaufwand

20 Minuten

Einleitung

The LCD screen is a helpful display when taking photos. A cracked or damaged screen needs replacement.

  1. 2LNguhASQHXSkDPV

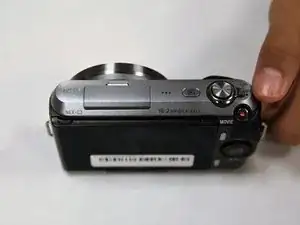

    • Turn off the camera by sliding the power switch.

  2. ZAPycAsDKVOEWeOP

    • Tilt up the LCD screen.

  3. ZlvHB1dcxGdkXwUL

    • Use a Phillips head 000 screwdriver to remove the two 2.0mm screws on the bottom of the LCD screen.

  4. ph5MeSyoLOBKaP4o
    ph5MeSyoLOBKaP4o
    AkYUAMbIUuTIO4rn
    mVDLA2Fb3NeQtYHh

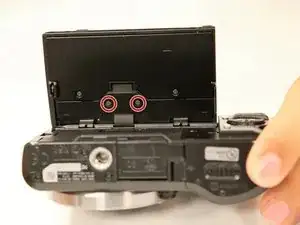

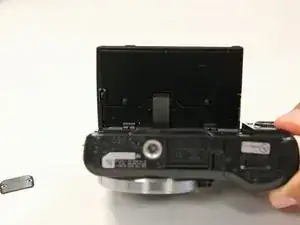

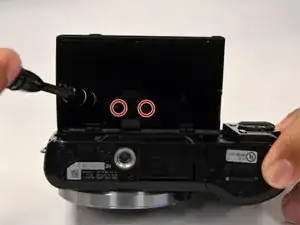

    • Use a Phillips head 000 screwdriver to remove the two 1.0mm screws on the smaller backplate of the LCD screen that covers the ribbon cable.

    • The smaller backplate should easily come off. Put it to the side.

  5. nnJDdySXHMytAFSx
    nnJDdySXHMytAFSx
    fMEyeNb3mUFqL6nd

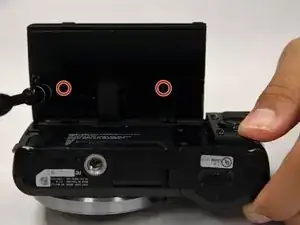

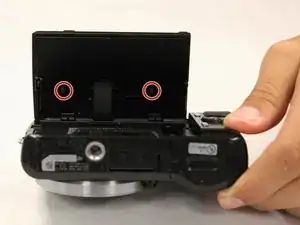

    • Use a Phillips head 000 screwdriver to remove the two 1.0mm screws on the bigger backplate of the LCD.

  6. pLH2pJEOkfvvkBWg
    pLH2pJEOkfvvkBWg
    Mw4FuteMRfWQoM2T

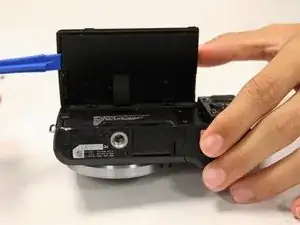

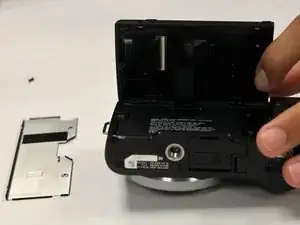

    • Using the plastic opening tool, remove the larger backplate from the LCD screen.

  7. qrlkbo3tg5ZDMqT3

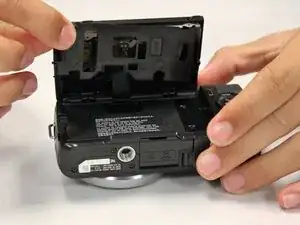

    • With your hands, gently remove the black plastic piece on the backside of the LCD screen.

  8. tXQM1N5UMI2L6BlN
    tXQM1N5UMI2L6BlN
    1WNWLVHSCgKuUILF

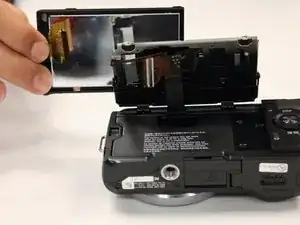

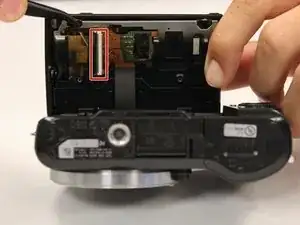

    • Using tweezers, gently pull up and away on the ribbon cable connected to the motherboard, after which, the LCD screen should come off.

    • The motherboard ribbon cable has a specific connector.

Abschluss

To reassemble your device, follow these instructions in reverse order. However, when installing the ribbon cable, the connector has a specific step. The connector has a tiny flap that clamps down onto the ribbon cable in order to make it secure.
