Sony Alpha a7S II Viewfinder Plate Replacement

Geschrieben von: Brittany Pourciau
  • Kommentare: 0
Sony Alpha a7S II Viewfinder Plate Replacement

Schwierigkeitsgrad

Moderate

Schritte

7

Zeitaufwand

7 Minuten

Einleitung

If your viewfinder is cracked and hard to remove, please follow the guide as closely as possible to avoid damaging the camera and yourself.

  1. h3NOW2tWEYLl5p3X

    • Orient your camera so that you are looking at the posterior portion.

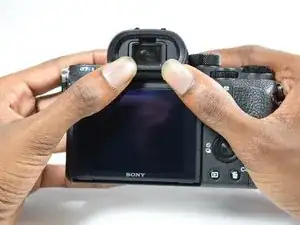

  2. uTCrjkuvXMmKqBtv

    • Place each of your thumbs on the interior portions of the eyepiece cup, pressing down and pushing up.

  3. 1UDIyiZyZkhDUEW6

    • Slide the eyepiece off by carefully pulling it upward.

    • Be careful not to come into contact with the viewfinder lens as the lens can be easily scratched.

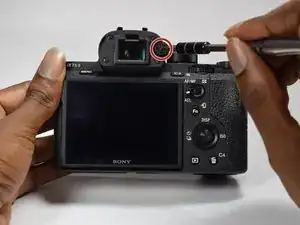

  4. JCmuJvtCPImIrD4F

    • Remove the screw from the middle of the diopter with the JIS #00 screwdriver.

  5. pQErENJss4uwHA1Q

    • Remove the diopter with your hands. If the diopter is at all stuck you can use the pointed tweezers to help aid in the removal process.

    • Be careful not to let fingers or tweezers come into contact with the viewfinder lens as the lens can be easily scratched.

  6. fhBj5bJiBH4RXyn2

    • Remove the 4 screws on the viewfinder plate with a JIS #00 screwdriver.

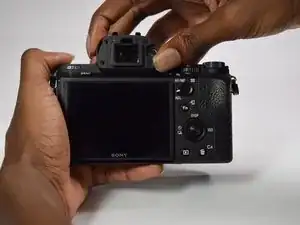

  7. JZWsaiIZLZS1JQiE
    JZWsaiIZLZS1JQiE

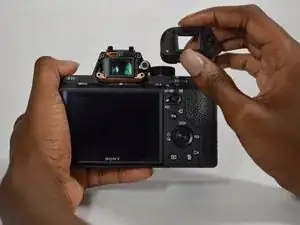

    crreoPH4vjeGfWIS

    • Carefully remove the plastic viewfinder plate from the camera.

Abschluss

To reassemble your device, follow these instructions in reverse order.
