Sony Alpha a7s II LCD Replacement

Geschrieben von: Jabari Montsho
  • Kommentare: 4
Sony Alpha a7s II LCD Replacement

Schwierigkeitsgrad

Moderate

Schritte

5

Zeitaufwand

10 Minuten

Einleitung

The LCD screen can be pulled out to a couple of different angles. However, be careful when angling it because it does have restrictions. Doing so past those restrictions will break the LCD bracket holding it in place.

  1. MHyWW2FcA5KbNDMc

    • Orient the camera so that the LCD screen is facing you.

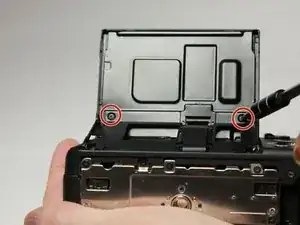

  2. rnQYENjFwxyd6cDd

    • Lift the LCD screen to unscrew the 2 screws on its underside.

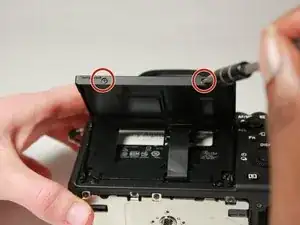

  3. kI6fLvUECncYNeBm

    • Unscrew the 2 screws on the bottom of the LCD screen.

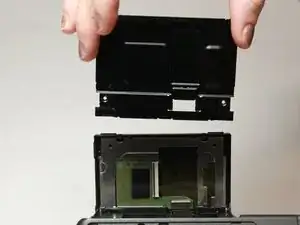

  4. EeI46YhPtDSWukSU

    • Carefully remove the back of the LCD cover.

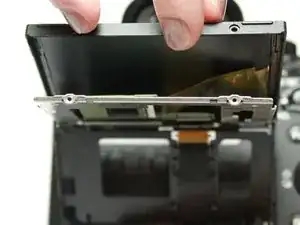

  5. UxChEFOvVSSi55Ae

    • Carefully pull up the LCD front cover from the metal internal frame.

    • Be careful of the wire ribbon as it is fragile.

Abschluss

To reassemble your device, follow these instructions in reverse order.

Tinte & Feder

Jabari Montsho

Mitglied seit: 24/10/18

391 Reputation

4 Kommentare

And the how do you change the LCD screen please ? How to remove it ?

timothee.ferreol -

I have the exact same question, I need to change the screen with flex cable as well. Thanks, there isn’t a lot of info on the a7s 2, it’s all a7r out there

Viro Films -

Hello. My LCD backlight stop working after water came into the camera (snow). With a flash light I was able to determine it is the backlight since I was able to detect some menu items on the screen. I bought a replacement LDC unit, my thinking was that the backlight itself was damaged and a new one would do the trick. After replacing the screen, I have the same probleme. So I suppose my problem come from deeper in the camera. The camera itself do not command the backlight to turn on. Is there something I can do? any more troubleshooting?

Thanks!

Jean-Philippe Archibald -

What size screws!?

Alain Bucio -
